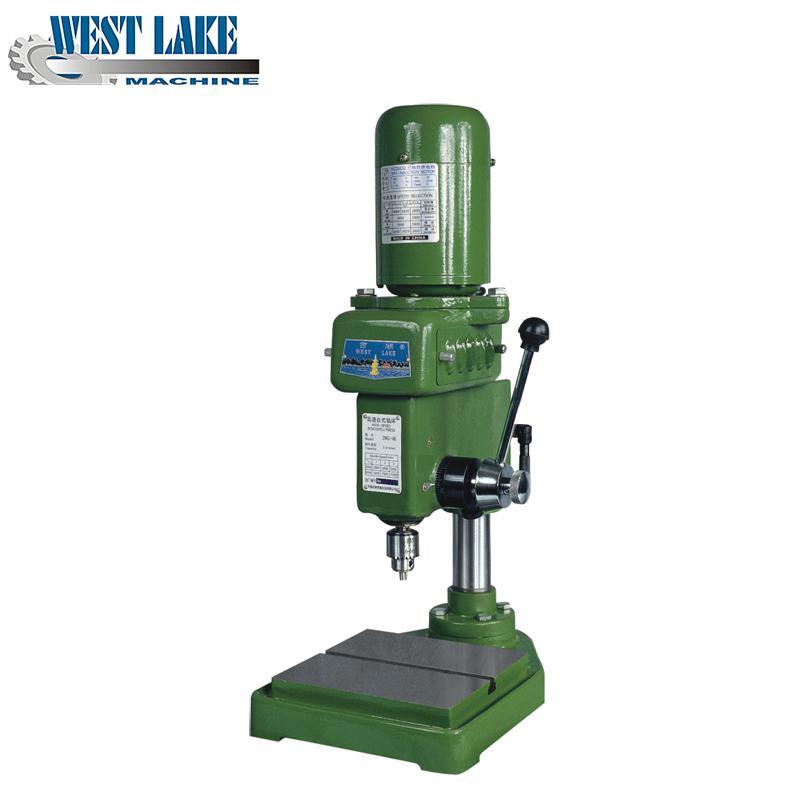

West Lake High-Speed Drilling 4mm, 150W, 9000rpm, 150kg, ZWG-4B

West Lake High-Speed Drilling 4mm, 150W, 9000rpm, 150kg, ZWG-4B
West Lake High-Speed Drilling 4mm, 150W, 9000rpm, 150kg, ZWG-4B

West Lake High-Speed Drilling 4mm, 150W, 9000rpm, 150kg, ZWG-4B

Product Code: ZWG-4B (1 phase)
Availability: Pre Order
Loading ...
Share:

Model: ZWG-4B (1 phase)
ZWG-4B provides high speed and great accuracy in drilling.

Features

  • High spindle speeds
  • Belt driven on an even keel
  • Minimized vibration
  • Great precision & rigidity

Specifications

Max Drilling Capacity 4mm
Diameter of column 40mm
Spindle Travel 40mm
Distance spindle axis to column surface 127mm
Max. Distance spindle nose to worktable    ---
Max. Distance soindle nose to nose 170mm
Spindle Taper B10
Spindle Speeds Range 2800 - 9000rpm
Spindle speeds 3
Dimensions of worktable surface ---
Dimension of base worktable surface 180mm x 175mm
Overall Height 618mm
Motor 150W
Weight 22.5kg
