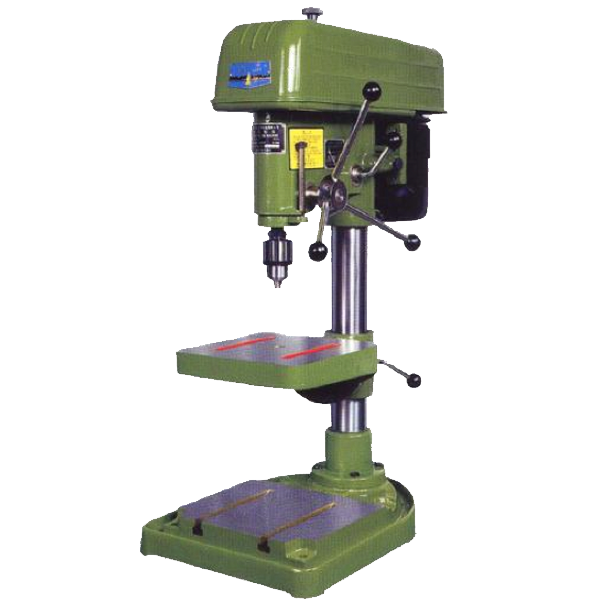

West Lake Industrial Bench Drill 16mm, 550W, 4100rpm, 86kg Z-516
Product Code: Z-516C
Availability: Pre Order
Model: Z-516C (1 phase)
Z-516C is an Industrialize bench drill.
Features
- High spindle speeds
- High precision chuck
- Great precision & rigidity
Specifications
| Max Drilling Capacity | 16mm |
| Diameter of column | 70mm |
| Spindle Travel | 100mm |
| Distance spindle axis to column surface | 193mm |
| Max. Distance spindle nose to worktable | (MT2:362) 318mm |
| Max. Distance soindle nose to nose | (MT2:592) 548mm |
| Spindle Taper | B18 or MT2 |
| Spindle Speeds Range | 480 - 4100rpm |
| Spindle speeds | 5 |
| Dimensions of worktable surface | 265mm x 265mm |
| Dimension of base worktable surface | 250mm x 300mm |
| Overall Height | 1037mm |
| Motor | 550W |
| Weight | 86kg |
