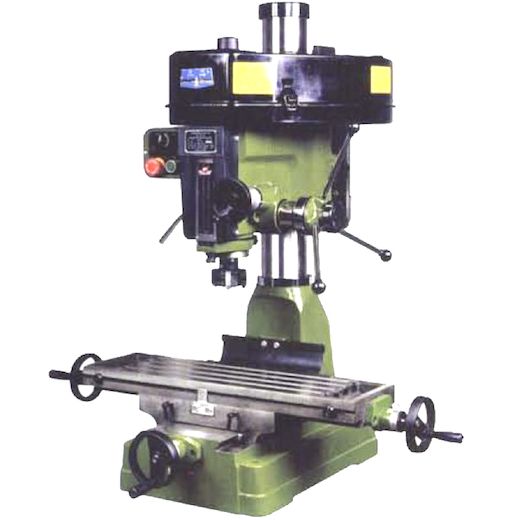

West Lake Milling & Drilling M12 1500W 2150rpm 1Ø 285kg ZX-7032
West Lake Milling & Drilling M12 1500W 2150rpm 1Ø 285kg ZX-7032

West Lake Milling & Drilling M12 1500W 2150rpm 1Ø 285kg ZX-7032

Product Code: ZX-7032 (1 phase)
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: ZX-7032 (1 phase)
1 Phase is NOT available for Tapping.

Price inclusives 6%GST

Features

  • Gear shift, friendly operation
  • Wide range of speed adjustment
  • Gear driven, gear quench high carrying capacity greatorsional moment
  • Head rotation is operated with bracket. Will be much more precise while beveling a hole.
  • High gear precision, low noise

Specifications

Max. Tapping Capacity   M12
Max. Drilling Capacity Cast Iron: 31.5 mm
Steel: 19mm
Width of Face Milling 80 mm
Diameter of Vertical Milling 22 mm
Spindle Travel 130 mm
Distance Spindle Axis to Column Surface 202 mm
Max. Distance Spindle Nose to Workable 450 mm
Spindle Taper MT 3 or R8
Spindle Speeds Range 100-2150 rpm
Spindle Speeds 12
Dimensions of Table 730 x 210 mm
Travel of Worktable 500 x 175 mm
Overall Height 1100 mm
Headstock Travel 315 mm
Motor 1500 W
Weight 285 kg
