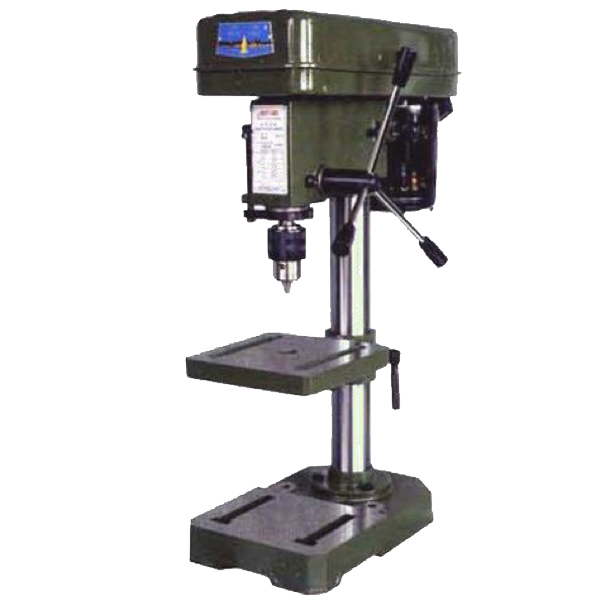

West Lake Normal Bench Drill 13mm, 150W, 2580rpm, 21kg ZHX-13
West Lake Normal Bench Drill 13mm, 150W, 2580rpm, 21kg ZHX-13

West Lake Normal Bench Drill 13mm, 150W, 2580rpm, 21kg ZHX-13

Product Code: ZHX-13 (1 phase)
Availability: Pre Order
Loading ...
017 432 8850016 397 5838
Share:

Model: ZHX-13 (1 phase)
Light duty bench drilling machine.

Features

  • High spindle speeds
  • Great precision & rigidity

Specifications

Max Drilling Capacity 13mm
Diameter of column 48mm
Spindle Travel 50mm
Distance spindle axis to column surface 103mm
Max. Distance spindle nose to worktable    220mm
Max. Distance soindle nose to nose 300mm
Spindle Taper B16
Spindle Speeds Range 515 - 2580rpm
Spindle speeds 5
Dimensions of worktable surface 165 x 162mm
Dimension of base worktable surface 178mm x 140mm
Overall Height 581mm
Motor 150W
Weight 21kg
