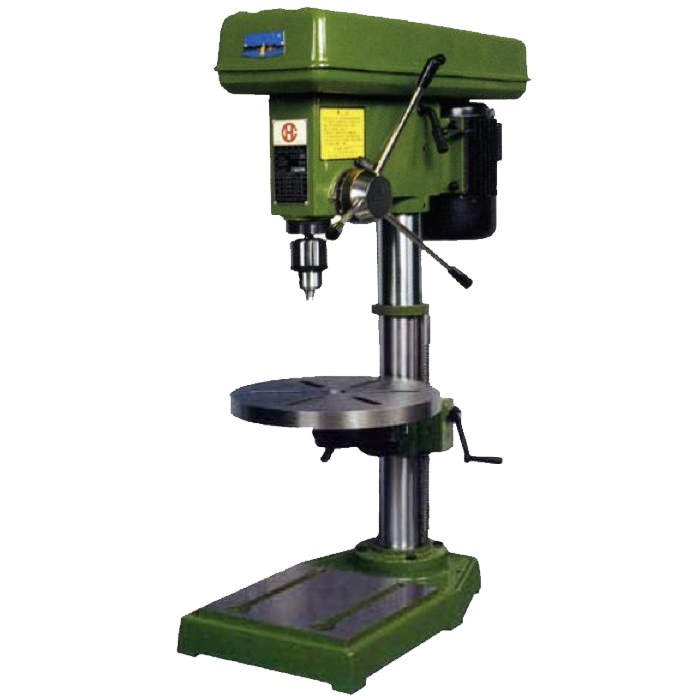

West Lake Normal Bench Drill 13mm, 370W, 2650rpm, 60kg ZQ-4113B
Product Code: ZQ-4113B(1 single phase)
Availability: Pre Order
Model: ZQ-4113B (1 single phase)
Features
- Belt driven, Low noise
- The belt will skid when the machine is overload
- Mainly use in repair area and family
Specifications
| Max Drilling Capacity | 13mm |
| Diameter of column | 70mm |
| Spindle Travel | 85mm |
| Distance spindle axis to column surface | 180mm |
| Max. Distance spindle nose to worktable | 318mm |
| Max. Distance soindle nose to nose | 475mm |
| Spindle Taper | B16 |
| Spindle Speeds Range | 450 - 2650rpm |
| Spindle speeds | 4 |
| Dimensions of worktable surface | Ø 300mm |
| Dimension of base worktable surface | 220mm x 220mm |
| Overall Height | 858mm |
| Motor | 370W |
| Weight | 59.5kg |
