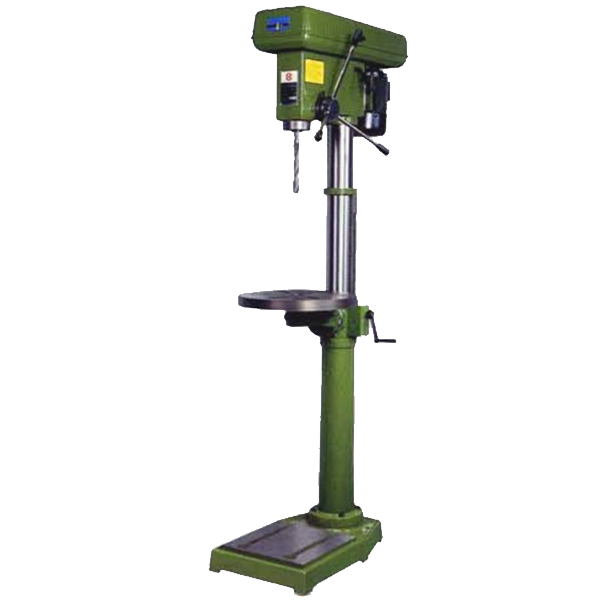

West Lake Normal Bench Drill 25mm, 750W, 2260rpm, 120kg ZQD-4125
Product Code: ZQD-4125 (1 single phase)
Availability: Pre Order
Model: ZQD-4125 (1 single phase)
Features
- Belt driven, Low noise
- The belt will skid when the machine is overload
- Mainly use in repair area and family
Specifications
| Max Drilling Capacity | 25mm |
| Diameter of column | 85mm |
| Spindle Travel | 110mm |
| Distance spindle axis to column surface | 200mm |
| Max. Distance spindle nose to worktable | 490mm |
| Max. Distance soindle nose to nose | 1240mm |
| Spindle Taper | MT3 |
| Spindle Speeds Range | 200 - 2600rpm |
| Spindle speeds | 9 |
| Dimensions of worktable surface | Ø 360mm |
| Dimension of base worktable surface | 300mm x 300mm |
| Overall Height | 1680mm |
| Motor | 750W |
| Weight | 120kg |
