West Lake Tap & Drilling M16, 750W, 1820rpm, 3Ø, 108kg JZS-16
West Lake Tap & Drilling M16, 750W, 1820rpm, 3Ø, 108kg JZS-16

West Lake Tap & Drilling M16, 750W, 1820rpm, 3Ø, 108kg JZS-16

Product Code: JZS-16 (3 phase)
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: JZS-16 (3 phase)

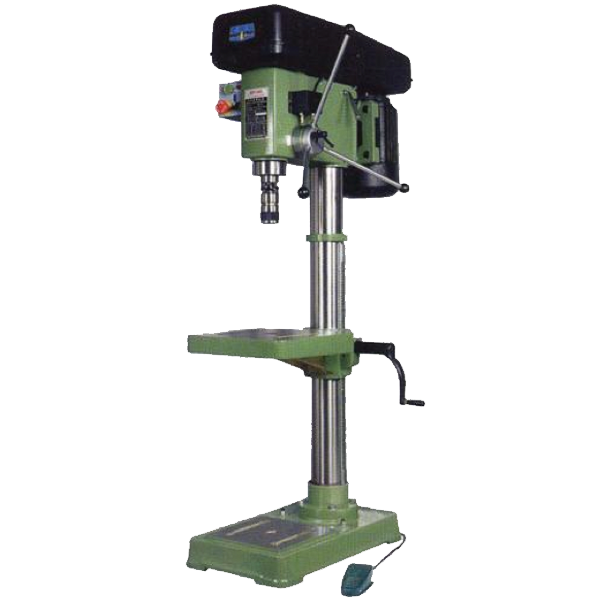

Drilling and tapping machine.

Price inclusives 6%GST.

Featureas

  • Belt driven in an even keel
  • Drilling and tapping
  • Good quality of electric components for long life using
  • Equipped with pedal switch and easy to operate

Specifications

Max. Tapping Capacity   Cast Iron: M16
Steel: M12
Max. Drilling Capacity 16 mm
Diameter of Column 85 mm
Spindle Travel 93 mm
Distance Spindle Axis to Column Surface 180 mm
Max. Distance Spindle Nose to Workable 425 mm
Max. Distance Spindle Nose to Base 610 mm
Spindle Taper MT 2
Spindle Speeds Range 160-1820 rpm
Spindle Speeds 9
Dimensions of Worktable Surface 270 x 280 mm
Dimensions of Base Worktable Surface 245 x 245 mm
Overall Height 1050 mm
Motor 750 W
Weight 108 kg
