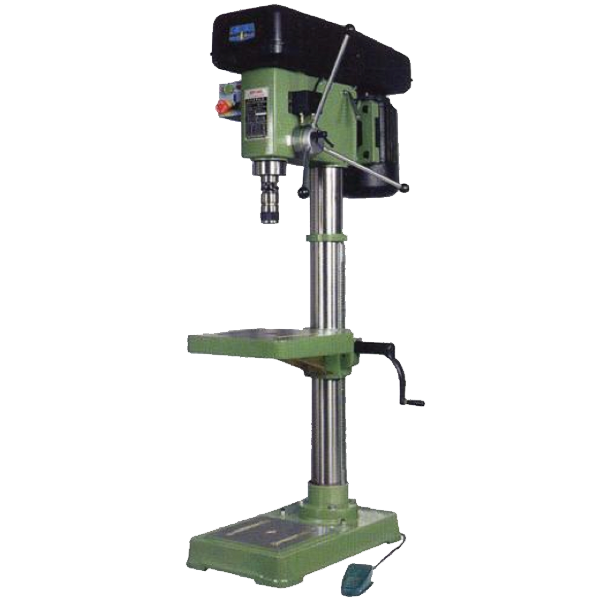

West Lake Tap & Drilling M24, 1500W, 1880rpm, 3Ø, 193kg JZS-25

West Lake Tap & Drilling M24, 1500W, 1880rpm, 3Ø, 193kg JZS-25
West Lake Tap & Drilling M24, 1500W, 1880rpm, 3Ø, 193kg JZS-25

West Lake Tap & Drilling M24, 1500W, 1880rpm, 3Ø, 193kg JZS-25

Product Code: JZS-25 (3 phase)
Availability: Pre Order
Loading ...
Share:

Model: JZS-25 (3 phase)
Drilling and tapping machine.

Price inclusives 6% GST.

Featureas

  • Belt driven in an even keel
  • Drilling and tapping
  • Good quality of electric components for long life using
  • Equipped with pedal switch and easy to operate

Specifications

Max. Tapping Capacity   Cast Iron: M24
Steel: M22
Max. Drilling Capacity 25 mm
Diameter of Column 102 mm
Spindle Travel 130 mm
Distance Spindle Axis to Column Surface 230 mm
Max. Distance Spindle Nose to Workable 750 mm
Max. Distance Spindle Nose to Base 990 mm
Spindle Taper MT 3
Spindle Speeds Range 160-1880 rpm
Spindle Speeds 9
Dimensions of Worktable Surface 340 x 360 mm
Dimensions of Base Worktable Surface 260 x 260 mm
Overall Height 1560 mm
Motor 1500 W
Weight 193 kg
