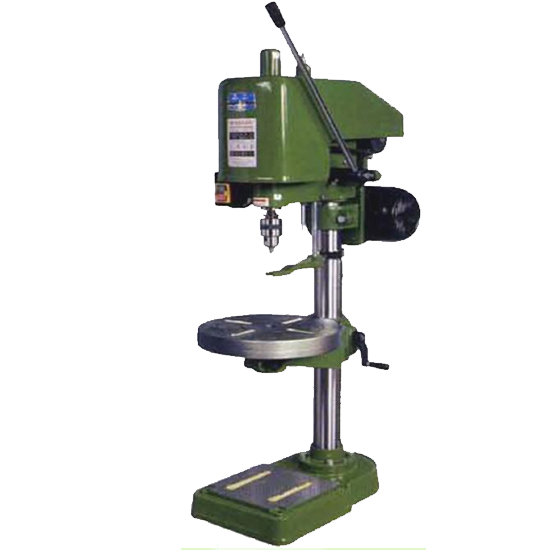

West Lake Tapping Machine M16, 750W, 650rpm, 3Ø, 102kg SWJ-16A
Product Code: SWJ-16A (3 phase)
Availability: In Stock
Model: SWJ-16A (3 phase)
Price inclusives 6%GST
Features
- Using friction clutch in changing the direction of rotation. (Clock wise & Anti-clock wise)
- Very small impact and libration
- Friction clutch is protected with over loading mechanism. It helps to protect tap as well.
Specifications
| Max. Tapping Capacity | Cast Iron: M16 Steel: M12 |
| Max. Drilling Capacity | N/A |
| Diameter of Column | 73 mm |
| Spindle Travel | 50 mm |
| Distance Spindle Axis to Column Surface | 183 mm |
| Max. Distance Spindle Nose to Workable | 450 mm |
| Max. Distance Spindle Nose to Base | N/A |
| Spindle Taper | B18 |
| Spindle Speeds Range | 240-570rpm 275-650rpm |
| Spindle Speeds | N/A |
| Dimensions of Worktable Surface | Ø 320mm |
| Dimensions of Base Worktable Surface | N/A |
| Overall Height | 1230 mm |
| Motor | 750 W |
| Weight | 102 kg |
