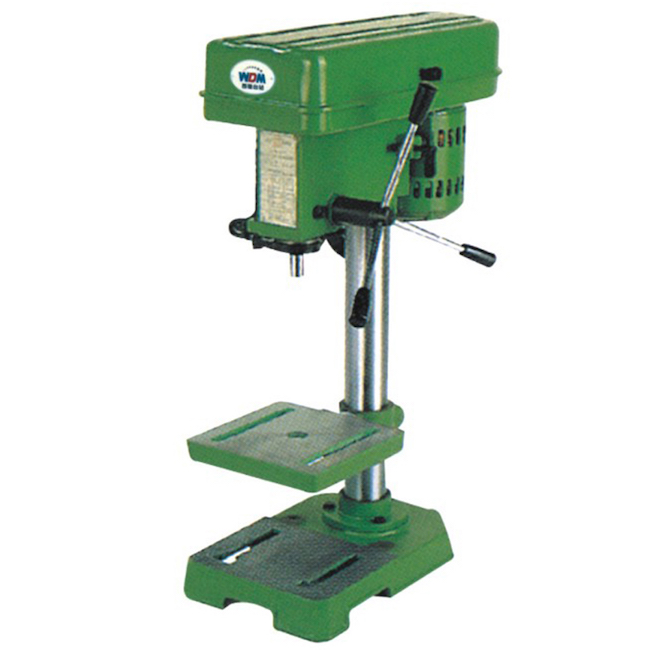

Xest Ling Bench Drilling 13mm, 2580rpm, 19kg ZHX-13
Product Code: ZHX-13
Availability: Pre Order
Model: ZHX-13
Light duty bench drilling machine.
Features
- Belt driven, Low noise
- The belt will skid when the machine is overload
- Mainly use in repair area and family
Specifications
| Max Drilling Capacity | 13mm |
| Diameter of column | 46mm |
| Spindle Travel | 50mm |
| Distance spindle axis to column surface | 103mm |
| Max. Distance spindle nose to worktable | 220mm |
| Max. Distance spindle nose to nose | 300mm |
| Spindle Taper | B16 |
| Spindle Speeds Range | 515~2580rpm |
| Spindle speeds | 5 |
| Dimensions of worktable surface | 160mm x 160mm |
| Dimension of base worktable surface | 280mm x 180mm |
| Overall Height | 580mm |
| Motor | 180W |
| Weight | 19kg |
