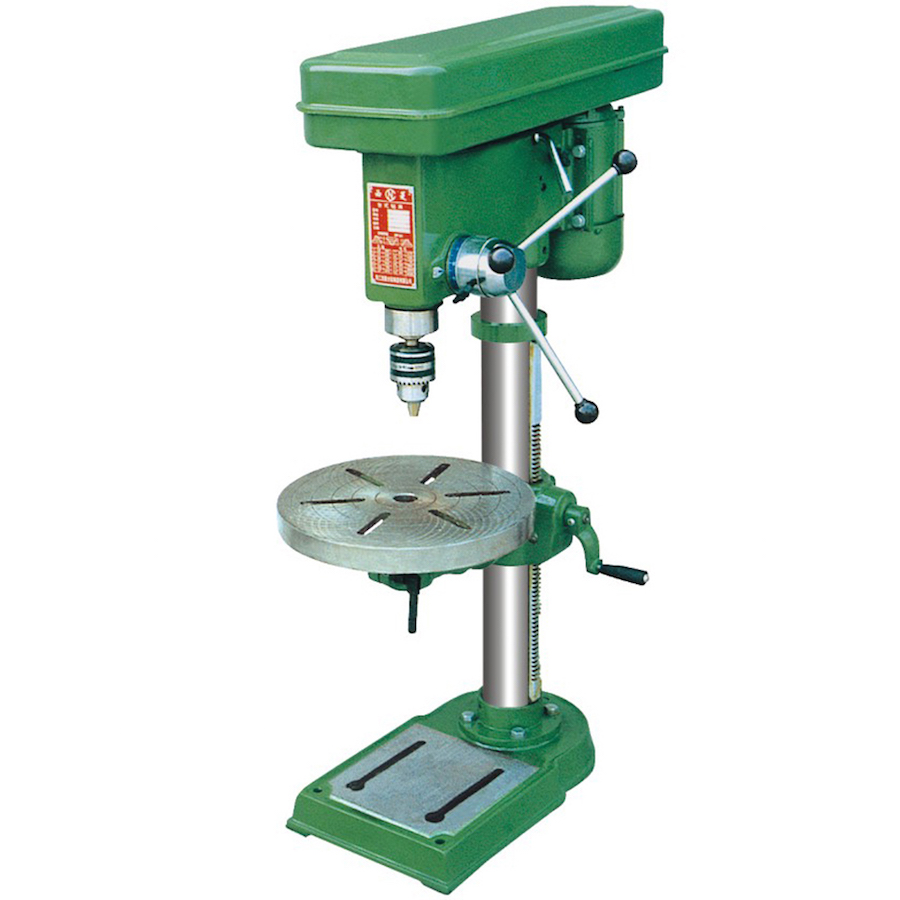

Xest Ling Bench Drilling 16mm, 3200rpm, 57kg ST-16A

  1. Home
  2. Product
  3. Bench Drilling Milling
  4. Bench Drilling
Xest Ling Bench Drilling 16mm, 3200rpm, 57kg ST-16A
Xest Ling Bench Drilling 16mm, 3200rpm, 57kg ST-16A

Xest Ling Bench Drilling 16mm, 3200rpm, 57kg ST-16A

Product Code: ST-16A
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: ST-16A
Light duty bench drilling machine.

.Features

  • Belt driven, Low noise
  • The belt will skid when the machine is overload
  • Mainly use in repair area and family

Specifications

Max Drilling Capacity 16mm
Diameter of column 71mm
Spindle Travel 80mm
Distance spindle axis to column surface 182mm
Max. Distance spindle nose to worktable    375mm
Max. Distance spindle nose to nose MT2: 565mm
Spindle Taper MT2
Spindle Speeds Range 250~3200rpm
Spindle speeds 12
Dimensions of worktable surface Ø 306mm
Dimension of base worktable surface 440mm x 255mm
Overall Height 985mm
Motor 550W
Weight 57kg
