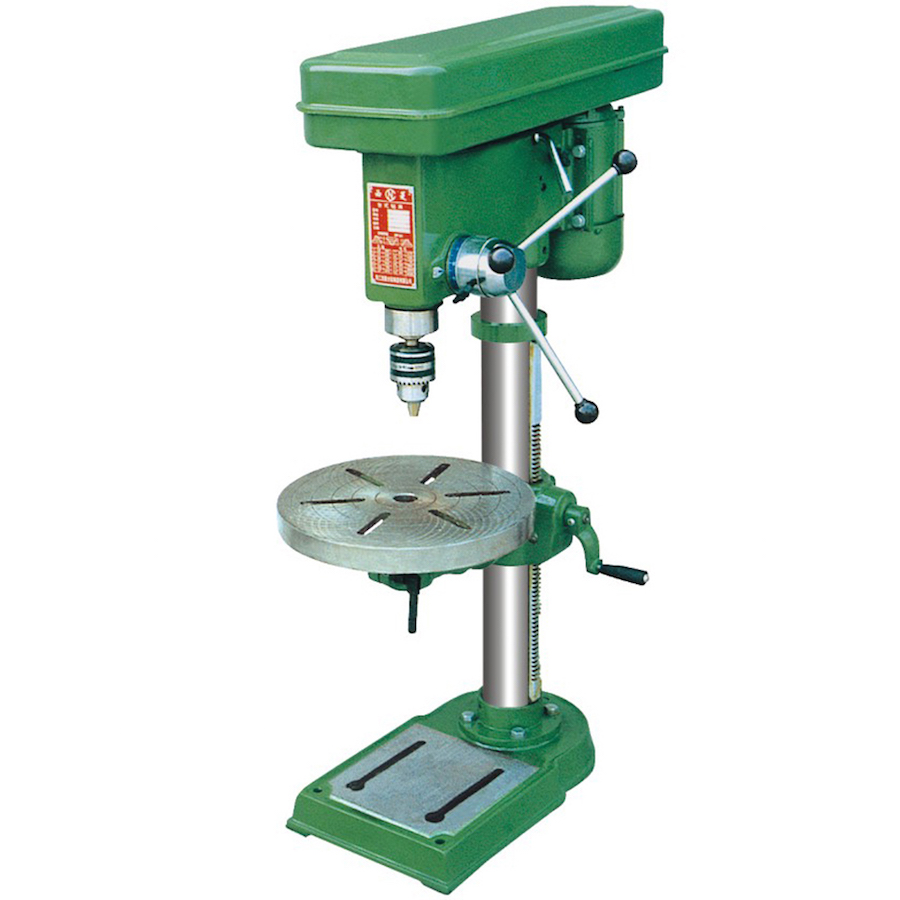

Xest Ling Bench Drilling 16mm, 3200rpm, 57kg ST-16A
Product Code: ST-16A
Availability: Pre Order
Model: ST-16A
Light duty bench drilling machine.
.Features
- Belt driven, Low noise
- The belt will skid when the machine is overload
- Mainly use in repair area and family
Specifications
| Max Drilling Capacity | 16mm |
| Diameter of column | 71mm |
| Spindle Travel | 80mm |
| Distance spindle axis to column surface | 182mm |
| Max. Distance spindle nose to worktable | 375mm |
| Max. Distance spindle nose to nose | MT2: 565mm |
| Spindle Taper | MT2 |
| Spindle Speeds Range | 250~3200rpm |
| Spindle speeds | 12 |
| Dimensions of worktable surface | Ø 306mm |
| Dimension of base worktable surface | 440mm x 255mm |
| Overall Height | 985mm |
| Motor | 550W |
| Weight | 57kg |
