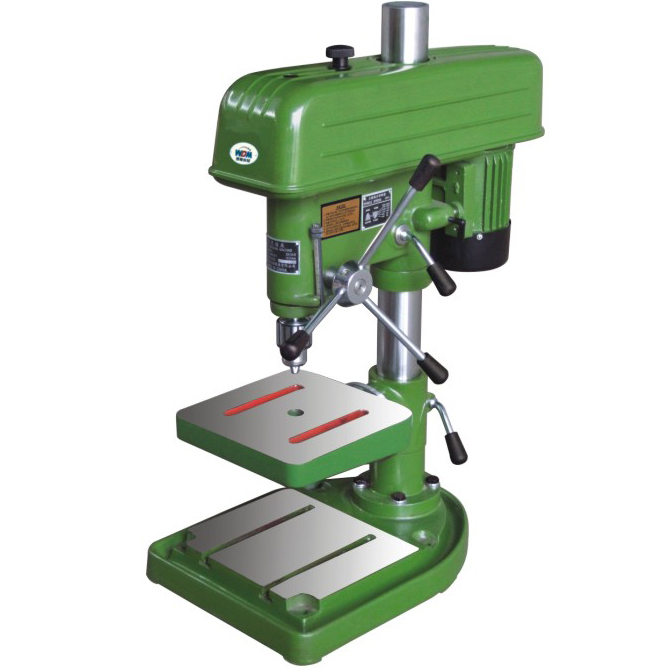

Xest Ling Bench Drilling 16mm, 4100rpm, 90kg Z516
Xest Ling Bench Drilling 16mm, 4100rpm, 90kg Z516

Xest Ling Bench Drilling 16mm, 4100rpm, 90kg Z516

Product Code: Z516
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model:Z516
Industrial type bench drilling machine.

Features

  • High spindle speeds
  • High precision chuck
  • Great precision & rigidity

Specifications

Max Drilling Capacity 16mm
Diameter of column 70mm
Spindle Travel 100mm
Distance spindle axis to column surface 193mm
Max. Distance spindle nose to worktable    326mm
Max. Distance spindle nose to base 560mm
Spindle Taper B18
Spindle Speeds Range 480~4100rpm
Spindle speeds 5
Dimensions of worktable surface 265mm x 265mm
Dimension of base worktable surface 528mm x 360mm
Overall Height 1037mm
Motor 550W
Weight 90kg
