Model: ZQD-4125

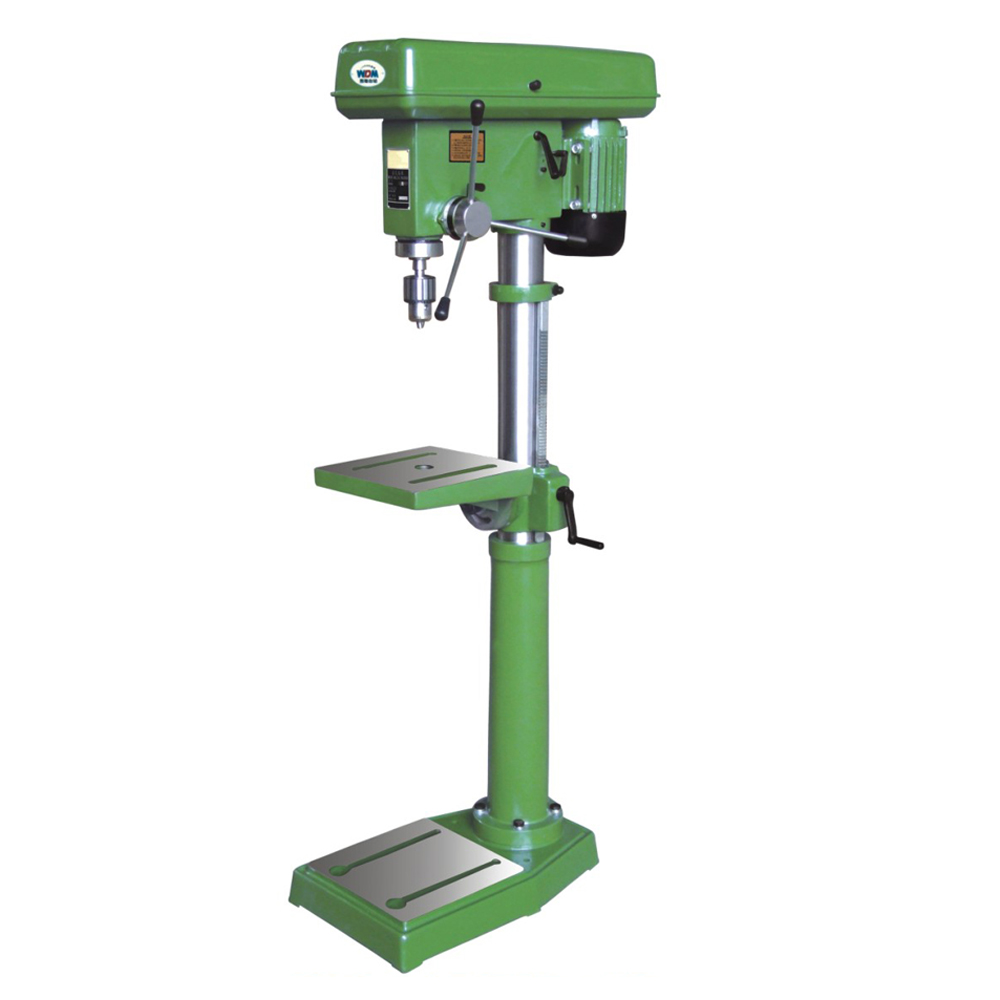

Light duty bench drilling machine up to 25mm.

Features

  • Belt driven, Low noise
  • The belt will skid when the machine is overload
  • Mainly use in repair area and family

Specifications

Max Drilling Capacity 25mm
Diameter of column 85mm
Spindle Travel 110mm
Distance spindle axis to column surface 200mm
Max. Distance spindle nose to worktable    490mm
Max. Distance spindle nose to base 1240mm
Spindle Taper MT3
Spindle Speeds Range 200~2280rpm
Spindle speeds 9
Dimensions of worktable surface 280mm x 280mm
Dimension of base worktable surface 566mm x 356mm
Overall Height 1680mm
Motor 550W
Weight 115kg
