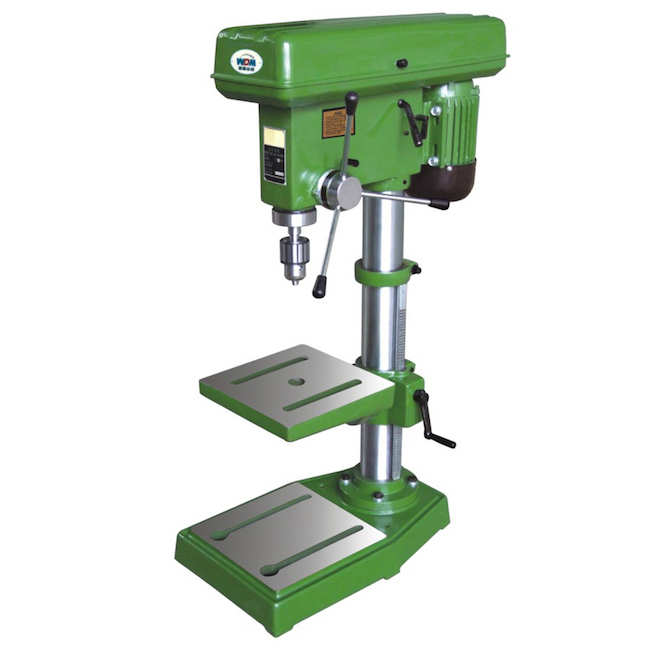

Xest Ling Bench Drilling 25mm, 2280rpm, 98kg ZQ-4125
Product Code: ZQ-4125
Availability: Pre Order
Model: ZQ-4125
Light duty bench drilling machine up to 25mm.
Features
- Belt driven, Low noise
- The belt will skid when the machine is overload
- Mainly use in repair area and family
Specifications
| Max Drilling Capacity | 25mm |
| Diameter of column | 85mm |
| Spindle Travel | 110mm |
| Distance spindle axis to column surface | 200mm |
| Max. Distance spindle nose to worktable | 480mm |
| Max. Distance spindle nose to base | 670mm |
| Spindle Taper | MT3 |
| Spindle Speeds Range | 200~2280rpm |
| Spindle speeds | 9 |
| Dimensions of worktable surface | 280mm x 280mm |
| Dimension of base worktable surface | 566mm x 356mm |
| Overall Height | 1110mm |
| Motor | 550W |
| Weight | 98kg |
