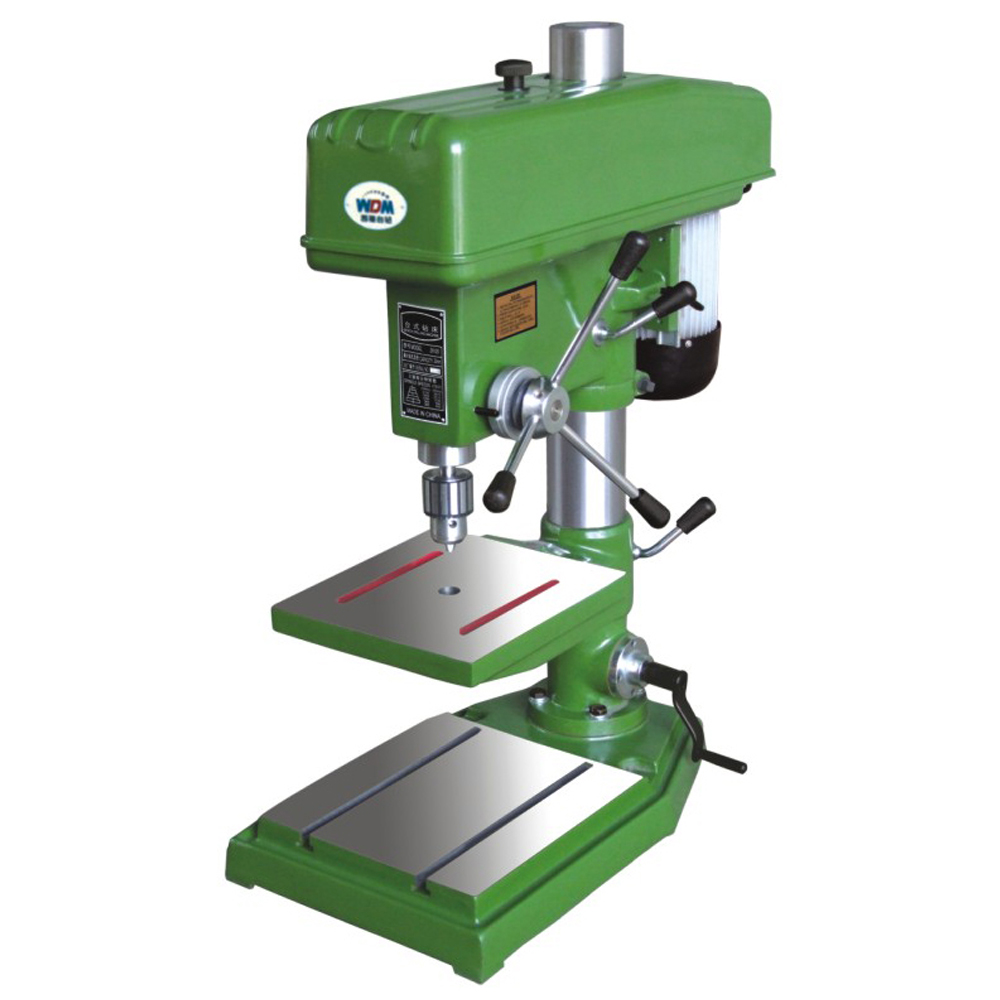

Xest Ling Bench Drilling 25mm, 3150rpm, 140kg Z4125

Xest Ling Bench Drilling 25mm, 3150rpm, 140kg Z4125
Xest Ling Bench Drilling 25mm, 3150rpm, 140kg Z4125

Xest Ling Bench Drilling 25mm, 3150rpm, 140kg Z4125

Product Code: Z4125
Availability: Pre Order
Loading ...
Share:

Model:Z4125
Industrial type bench drilling machine.

Price inclusives 6%GST.

Features

  • High spindle speeds
  • High precision chuck
  • Great precision & rigidity

Specifications

Max Drilling Capacity 25mm
Diameter of column 85mm
Spindle Travel 125mm
Distance spindle axis to column surface 240mm
Max. Distance spindle nose to worktable    367mm
Max. Distance spindle nose to base 630mm
Spindle Taper MT3
Spindle Speeds Range 365~3150rpm
Spindle speeds 5
Dimensions of worktable surface 280mm x 300mm
Dimension of base worktable surface 590mm x 375mm
Overall Height 1127mm
Motor 750W
Weight 140kg
