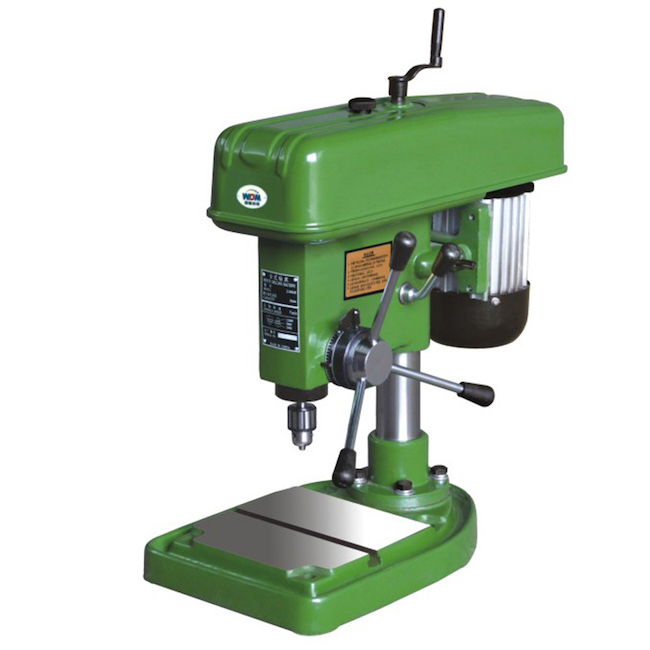

Xest Ling Bench Drilling 6mm, 12000rpm, 38kg Z406B

Xest Ling Bench Drilling 6mm, 12000rpm, 38kg Z406B
Xest Ling Bench Drilling 6mm, 12000rpm, 38kg Z406B

Xest Ling Bench Drilling 6mm, 12000rpm, 38kg Z406B

Product Code: Z406B
Availability: In Stock
Loading ...
Share:

Model: Z406B
High speed high accuracy bench drilling machine.

Specifications

Max Drilling Capacity 6mm
Diameter of column 50mm
Spindle Travel 65mm
Distance spindle axis to column surface 140mm
Max. Distance spindle nose to worktable    225mm
Spindle Taper B10
Spindle Speeds Range 2000~12000rpm
Spindle speeds 3
Dimensions of worktable surface 380mm x 258mm
Overall Height 605mm
Motor 250W
Weight 38kg
