Xest Ling Drilling & Milling Machine 16mm, 550W, 80kg ZX-7016

Xest Ling Drilling & Milling Machine 16mm, 550W, 80kg ZX-7016
Xest Ling Drilling & Milling Machine 16mm, 550W, 80kg ZX-7016

Xest Ling Drilling & Milling Machine 16mm, 550W, 80kg ZX-7016

Product Code: ZX-7016
Availability: Pre Order
Loading ...
Share:

Model: ZX-7016

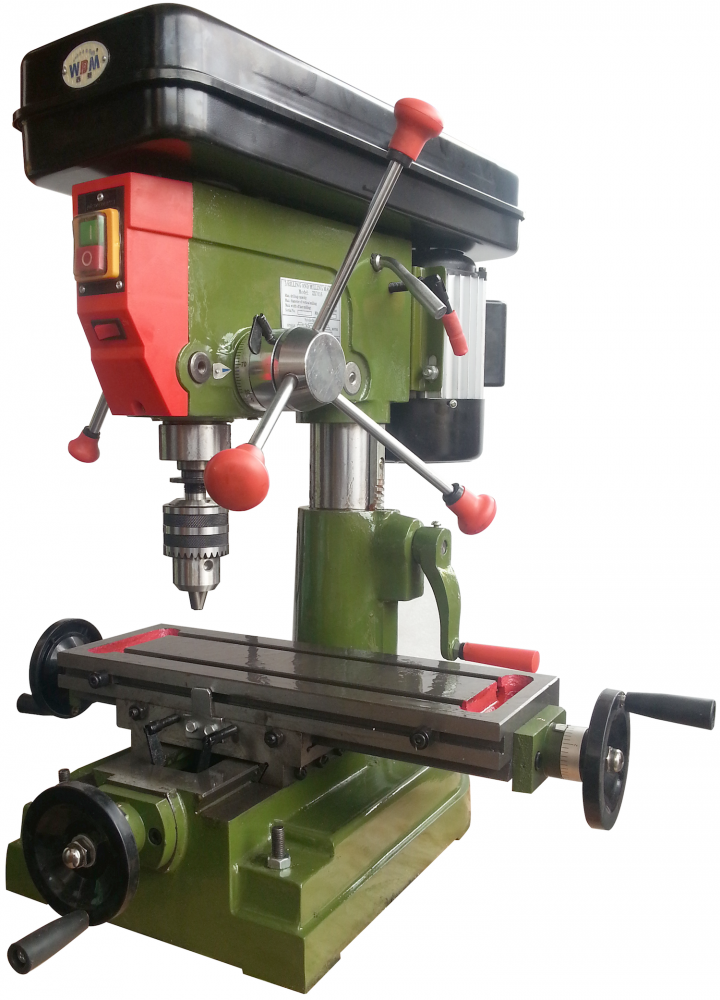

Xest Ling mini drilling & milling machine.

Features

  • Belt driven, friendly operation
  • 12 speeds adjustment.
  • Head rotation is operated with bracket. Will be much more precise while beveling a hole.
  • High precision, low noise.

Specifications

Max. Drilling Capacity  16mm
Max. Face Mill Capacity 40mm
Diameter of Vertical Milling  10mm
Spindle Travel 80mm
Distance Spindle Axis to Column Generating Line 182mm
Max. Distance Spindle Nose Totable 360mm
Spindle Taper MT2
Spindle Speeds Range 320~3300 rpm
Spindle Speeds Series 12
Dimension of Worktable Surface 420mm x 152mm
Table Travel 230mm x 120mm
Overal Height 900mm
Motor Output 550 Watts
Weight 80 kg
Weight included delivery 100kg

Standard Accessories

  • Drill chuck
  • Arbor
  • Wrench
