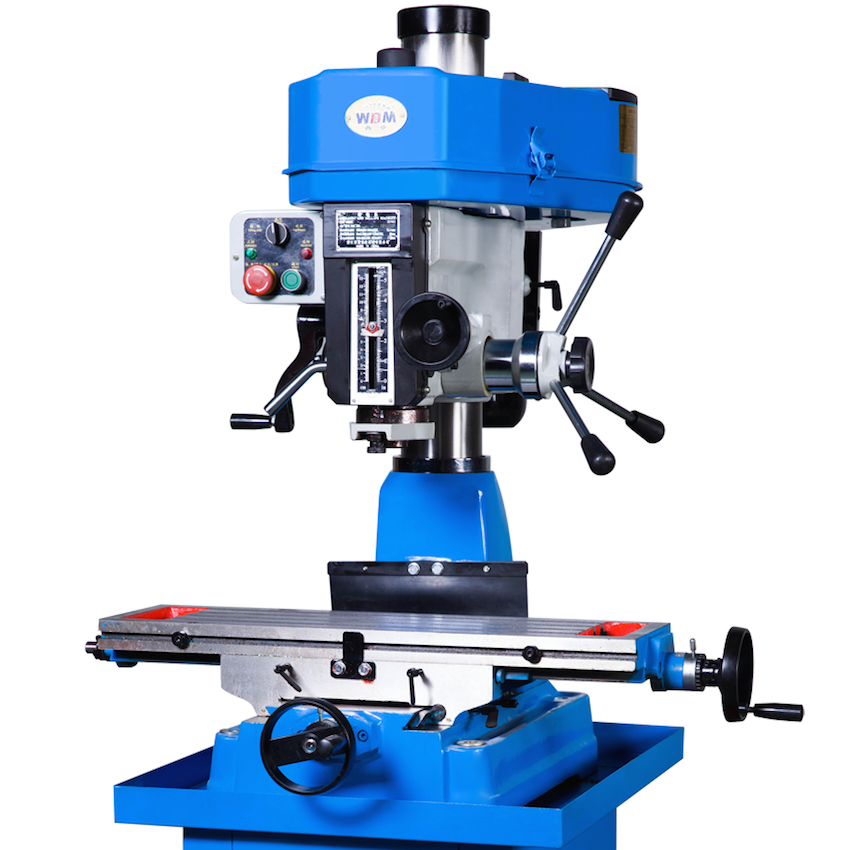

Xest Ling Drilling & Milling Machine 32mm,1500W,80kg ZX-7032(S)

  1. Home
  2. Product
  3. Bench Drilling Milling
  4. Milling Drilling
Xest Ling Drilling & Milling Machine 32mm,1500W,80kg ZX-7032(S)
Xest Ling Drilling & Milling Machine 32mm,1500W,80kg ZX-7032(S)

Xest Ling Drilling & Milling Machine 32mm,1500W,80kg ZX-7032(S)

Product Code: ZX-7032(S)
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: ZX-7032(S)
Milling and drilling machine. Single phase.

Features

  • Gear shift, friendly operation
  • Wide range of speed adjustment
  • Gear driven, gear quench high carrying capacity greatorsional moment
  • Head rotation is operated with bracket. Will be much more precise while beveling a hole.
  • High gear precision, low noise

Specifications

Max. Drilling Capacity  31.5mm
Max. Face Mill Capacity 80mm
Diameter of Vertical Milling  22mm
Spindle Travel 130mm
Distance Spindle Axis to Column Generating Line 202mm
Max. Distance Spindle Nose Totable 460mm
Spindle Taper MT3
Spindle Speeds Range 100~2150 rpm
Spindle Speeds Series 12
Dimension of Worktable Surface 730mm x 210mm
Table Travel 450mm x 170mm
Overal Height 1100mm
Motor Output 1100 Watts
Voltage 220~240V Single Phase
Weight 250 kg
Packing Dimensions (L x W x H) 860mm x 740mm x 1160mm

Standard Accessories Included

  • Drill chuck
  • Arbor
  • Wrench
