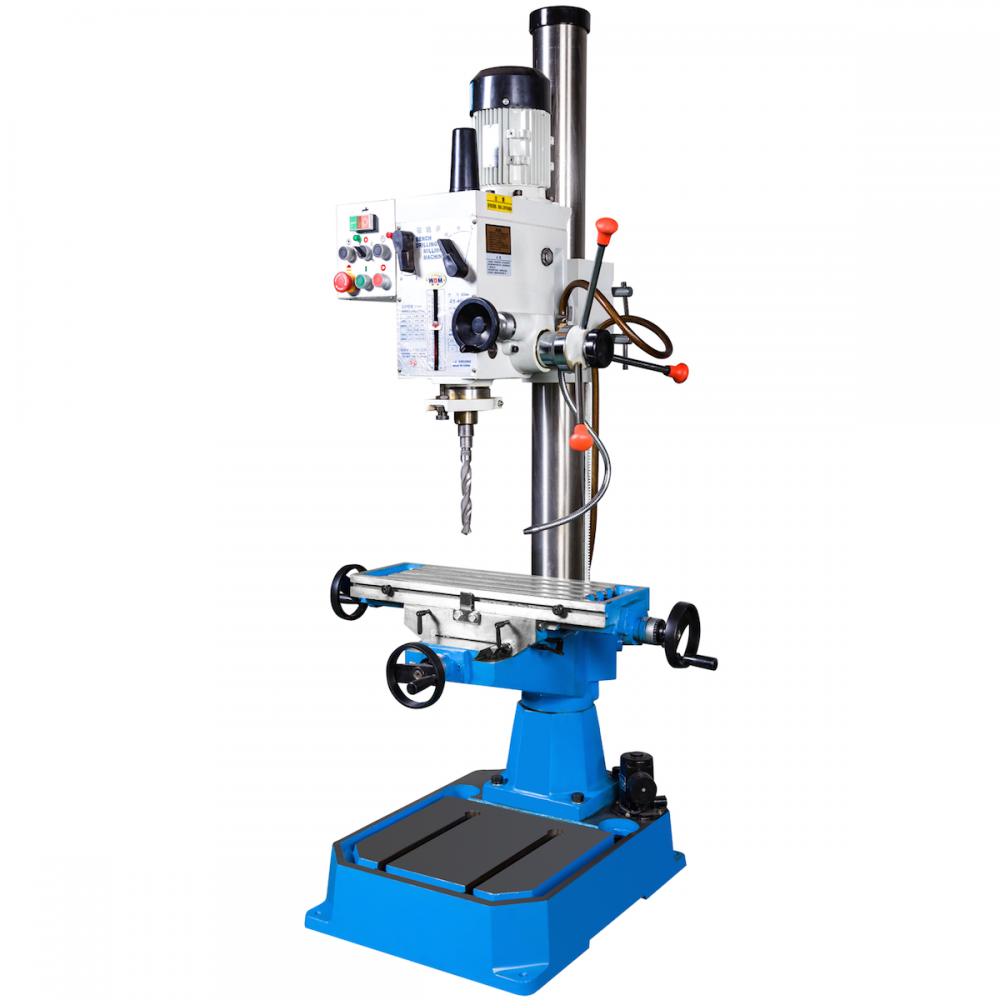

Xest Ling Drilling & Milling Machine 40mm,750W,375kg ZX-40PC

Product Code: ZX-40PC (With Coolant System)

Availability: Pre Order

Model: ZX-40PC (With Coolant System)
Gear driven milling and drilling machine. Single phase.

Features

The machine spindle can micro-feeding and hand-feeding.
Spindle speed change and easiness.
This machine use gear driving system, and its driving moment is strong enough to drilling, reaming and milling at all kinds of materials.
The spindle head which can rotated 360° and tilted ±45°.
The motor was driving by gear which overcome the short coming of belt driving.
The working scope is large enough for spindle head and work table not only up and down, but also rotation around the column.

Specifications

Max. Drilling Capacity	Cast Iron: 40mm Steel: 32mm
Max. Face Mill Capacity	80mm
Diameter of Vertical Milling	22mm
Diameter of Column	115mm
Spindle Travel	120mm
Distance Spindle Axis to Column Generating Line	272.5mm
Max. Distance Spindle Nose To Table	745mm
Max. Distance Spindle Nose to Base	1245mm
Spindle Taper	MT4
Spindle Speeds Range	95~1600 rpm
Spindle Speeds Series	6
Dimension of Worktable Surface	585mm x 190mm
Table Travel	370mm x 140mm x 515mm
Dimension of Base	690mm x 520mm
Overal Height	1810mm
Motor Output	750 Watts
Voltage	220~240V Single Phase
Weight	335 kg
Packing Dimensions (L x W x H)	720mm x 740mm x 1910mm
