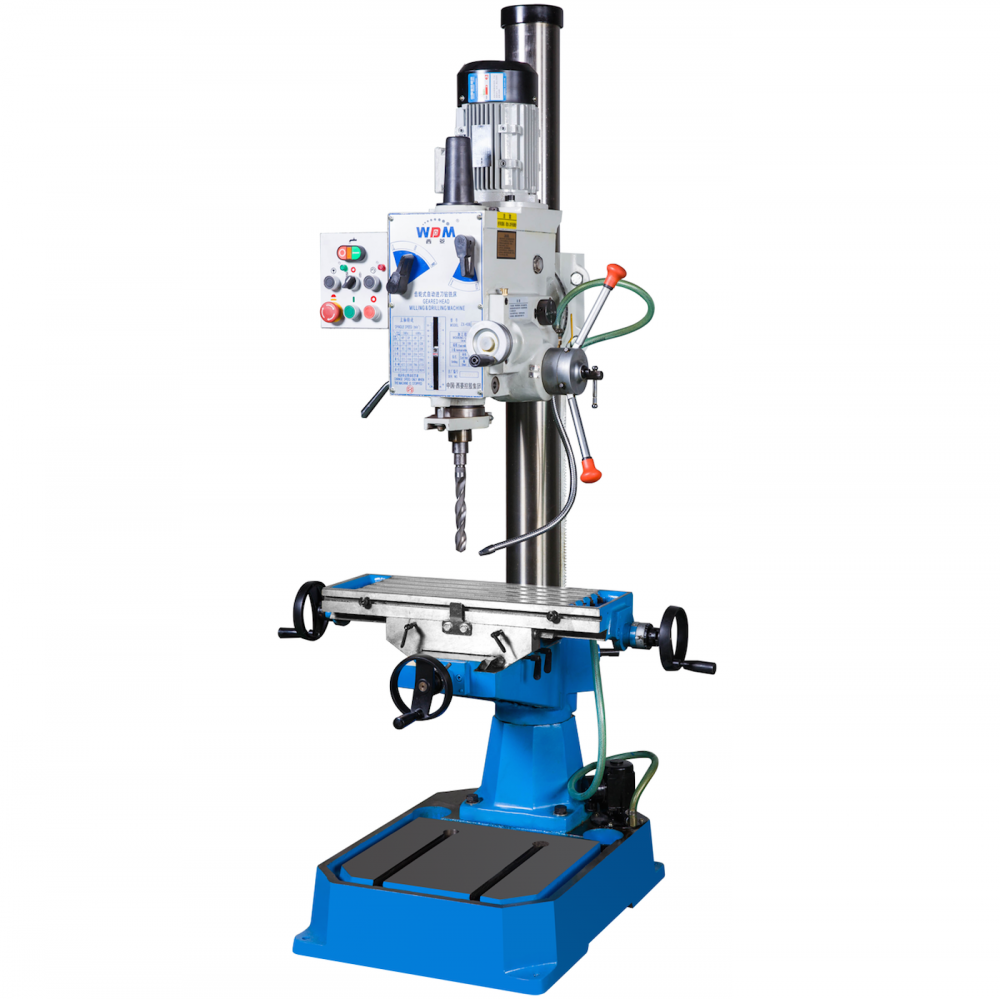

Xest Ling Drilling & Milling Machine 40mm,750W,390kg ZX-40BPC
Xest Ling Drilling & Milling Machine 40mm,750W,390kg ZX-40BPC

Xest Ling Drilling & Milling Machine 40mm,750W,390kg ZX-40BPC

Product Code: ZX-40BPC
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: ZX-40BPC
Gear head auto-feed drilling & milling machine. Single phase.

Features

  • Gear hardened
  • Large driven torque
  • C1 type optional 2-speed motor
  • Wide spindle speed range

Specifications

Max. Drilling Capacity  Cast Iron: 40mm
Steel: 32mm
Max. Face Mill Capacity 80mm
Diameter of Vertical Milling  22mm
Diameter of Column 115mm
Spindle Travel 110mm
Distance Spindle Axis to Column Generating Line 261.5mm
Max. Distance Spindle Nose To Table 745mm
Max. Distance Spindle Nose to Base 1245mm
Spindle Taper MT4
Spindle Speeds Range 50~1250 rpm
Spindle Speeds Series 6
Spindle Feeds a) 0.12mm/r
b) 0.18mm/r
c) 0.25mm/r
Dimension of Worktable Surface 585mm x 190mm
Table Travel 370mm x 140mm x 515mm
Dimension of Base 690mm x 520mm
Overal Height 1810mm
Motor Output 750 Watts
Voltage 220~240V Single Phase
Weight 390 kg
Packing Dimensions (L x W x H) 720mm x 740mm x 1910mm

Standard Accessories Included

  • Drill chuck
  • Arbor
  • Wrench
