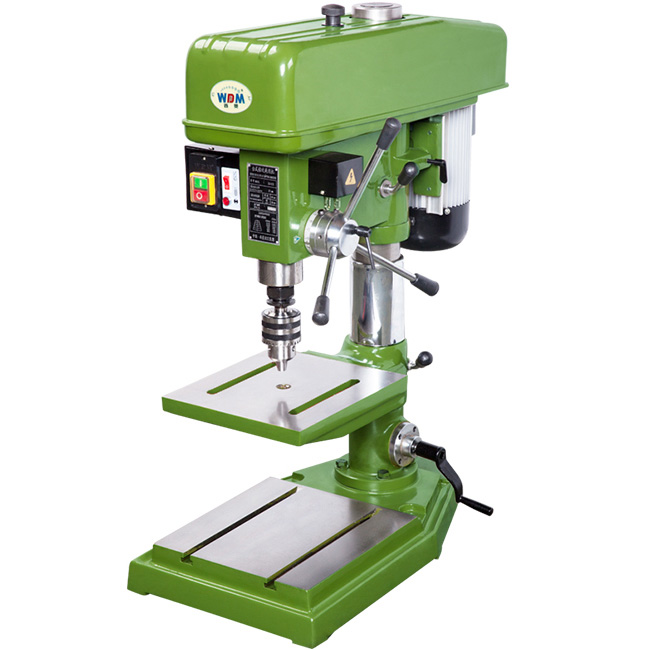

Xest Ling Drilling & Tapping 16mm/M10, 750W, 90kg ZS-4116B

  1. Home
  2. Product
  3. Bench Drilling Milling
  4. Tapping Drilling
Xest Ling Drilling & Tapping 16mm/M10, 750W, 90kg ZS-4116B
Xest Ling Drilling & Tapping 16mm/M10, 750W, 90kg ZS-4116B

Xest Ling Drilling & Tapping 16mm/M10, 750W, 90kg ZS-4116B

Product Code: ZS-4116B
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: ZS-4116B
Tapping and drilling machine with 750W 3 phase motor.

Price inclusives 6%GST.

Features

  • Using famous electrical equipment, stable feature and ever-lasting.
  • Change easily between drilling and tapping.
  • Special spindle design and arbor make sure chuck connections.

Specifications

Max. Drilling Capacity 16mm
Max. Tapping Capacity   M12
Diameter of Column 70 mm
Spindle Travel 100 mm
Distance Spindle Axis to Column Generating Line 193 mm
Max. Distance Spindle Nose to Table 315 mm
Max. Distance Spindle Nose to Base 556 mm
Spindle Taper MT2
Spindle Speeds Range 480-41000rpm
Spindle Speeds 5
Dimensions of Worktable Surface 200mm x 230mm
Dimensions of Base  528mm x 360mm
Overall Height 1037mm
Motor 550 W (4P)
Volts 380~415V, Three Phase
Weight 90 kg
Packing Dimensions 770mm x 420mm x 950mm

Standard Accessories

  • Drill chuck
  • Taper Sleeve
  • Arbor
  • Drift
  • Wrench
