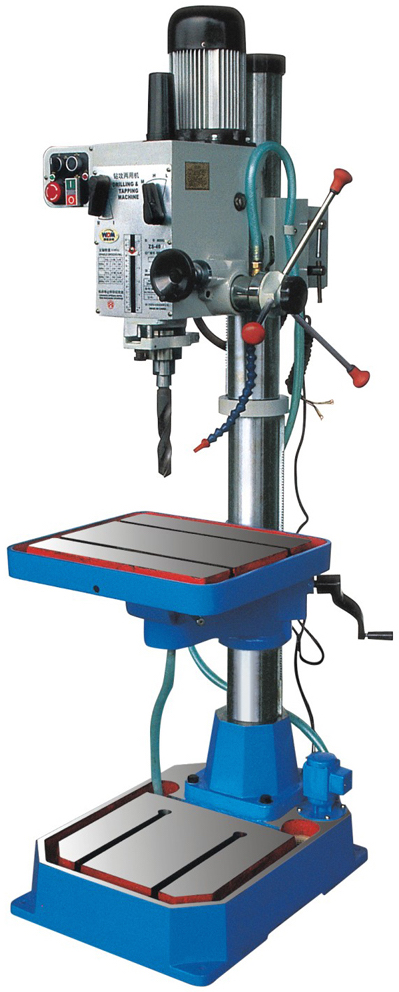

Xest Ling Gear Drilling & Tapping 40mm/M32, 750W, 310kg ZS-40PS
Xest Ling Gear Drilling & Tapping 40mm/M32, 750W, 310kg ZS-40PS

Xest Ling Gear Drilling & Tapping 40mm/M32, 750W, 310kg ZS-40PS

Product Code: ZS-40PS
Availability: Pre Order
Loading ...
017 432 8850016 397 5838
Share:

Model: ZS-40PS
Gear head drilling & tapping machine.

Price inclusives 6%GST.

Features

  • Gear driven: Accurate and powerful.
  • 6 variable speed.
  • The head is rotatable for 360°.
  • Tiltable ±45°.

Specifications

Max. Drilling Capacity Cast Iron: 40mm
Steel: 32mm
Max. Tapping Capacity   Cast Iron: M32
Steel: M24
Diameter of Column 115 mm
Spindle Travel 120 mm
Distance Spindle Axis to Column Generating Line 272.5 mm
Max. Distance Spindle Nose to Table 745mm
Max. Distance Spindle Nose to Base 1200 mm
Spindle Taper MT4
Spindle Speeds Range 95, 170, 280, 540, 960, 1600rpm
Spindle Speeds 6
Dimensions of Worktable Surface 540mm x 470mm
Table Travel 515mm
Dimensions of Base  635mm x 460mm
Overall Height 1760mm
Motor 750 W
Volts 380~415V, Three Phase
Weight 310 kg
