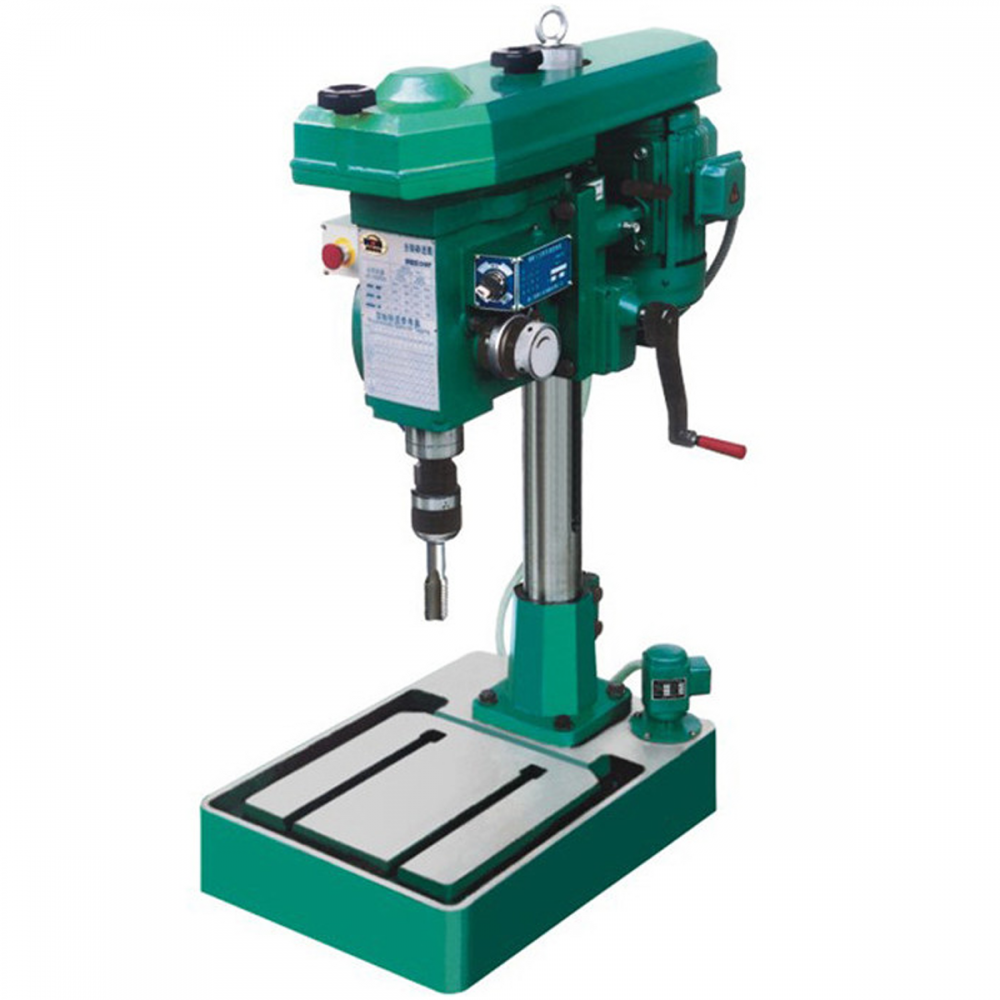

Xest Ling Gear Tapping Machine M30, 1500W, 350kg SB6532
Xest Ling Gear Tapping Machine M30, 1500W, 350kg SB6532

Xest Ling Gear Tapping Machine M30, 1500W, 350kg SB6532

Product Code: SB6532
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Model: SB6532
Gear type teeth distance tapping machine with tapping capacity from M10 to M30.

Price inclusives 6%GST.

Features

  • The machine feeding is driven by gear hence it will maximize the accuracy for tapping.
  • The depth of tapping is adjustable with a knob.
  • Keyless chuck.
  • Urgent buttom.
  • 3 speeds: 80, 150, 280rpm.

Specifications

Maximum Tapping Capacity  M32
Diameter of column 95mm
Spindle Travel 65mm
Disctance spindle axis to column gerating line 252.5mm
Max. Distance Spindle Nose to Base 600mm
Spindle Taper MT3
Spindle Speeds 80, 150, 280rpm (6P motor)
Spindle Speeds Series 3
Dimensions of Base 690mm x 500mm
Spindle Head Travel 450mm Overall Height
Overall Height 1165mm
Power Of Main Motor 1.5kW
Auto Feeding Thread Pitch Size 1.25/1.5/1.75/2.0/2.5/3.0/3.5mm
Weight 400kg
Packing Dimensions 1020mm x 620mm x 1350mm
