Model: Z5025

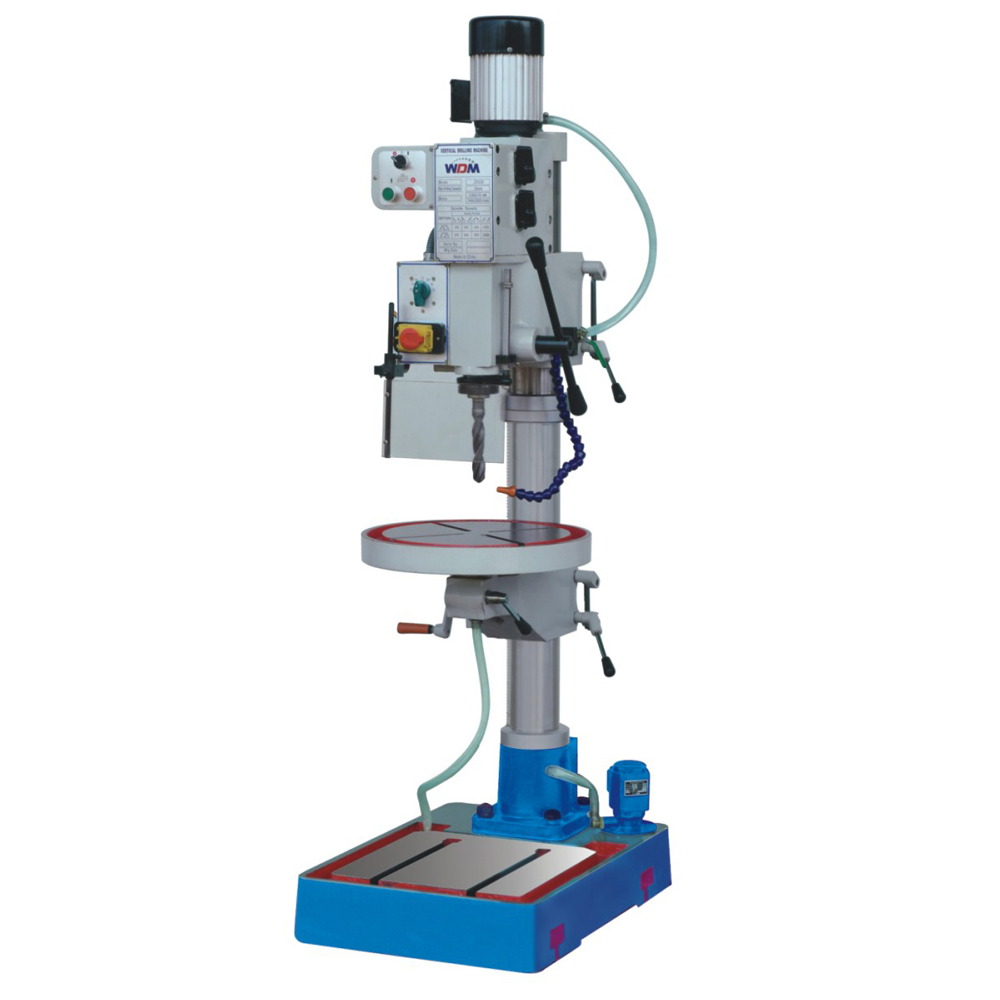

Pillar type vertical drilling machine.

Featureas

  • Gear driven
  • Good quality of electric components for long life using

Specifications

Max. Drilling Capacity 25 mm
Spindle Travel 150 mm
Distance Spindle Axis to Column Surface 225 mm
Max. Distance Spindle Nose to Workable 630 mm
Max. Distance Spindle Nose to Base 1670 mm
Spindle Taper MT 3
Spindle Speeds Range 100~2900 rpm
Spindle Speeds 8
Dimensions of Worktable Surface Ф400 mm
Dimensions of Base Worktable Surface Ф560 mm
Overall Height 1900 mm
Motor 750 W, 415V, 3 phase
Weight 250 kg
