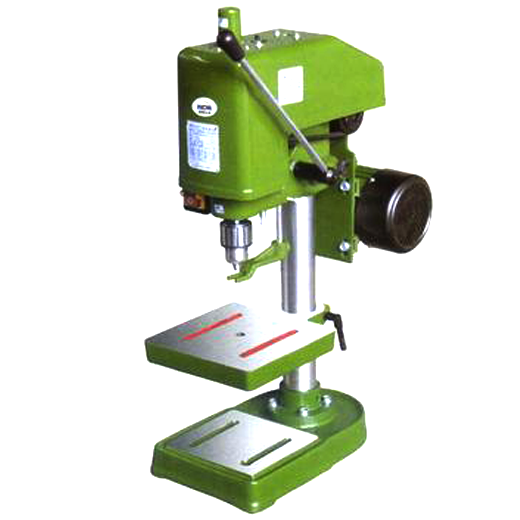

Xest Ling Tapping Machine M12, 750W, 570rpm, 102kg SWJ-16
Product Code: SWJ-16
Availability: Pre Order
Model: SWJ-16
Xest Ling SWJ series tapping machine.
Price inclusives 6% GST.
Features
- Simple structure and easy operation.
- It can tapping continuously widely used at all kinds of machinery, instrument, hardware tools and so on.
- It uses machinery friction clutch make which prolong the life of motor working stable and low noise and also has the over loading protection function.
Specifications
| Max. Tapping Capacity | Cast Iron: M16 Steel: M12 |
| Max. Drilling Capacity | N/A |
| Diameter of Column | 73 mm |
| Spindle Travel | 50 mm |
| Distance Spindle Axis to Column Surface | 183 mm |
| Max. Distance Spindle Nose to Workable | 485 mm |
| Max. Distance Spindle Nose to Base | 660 mm |
| Spindle Taper | B18 |
| Spindle Speeds Range | 260, 380, 570rpm |
| Spindle Speeds | 3 |
| Dimensions of Worktable Surface | 270mm x 280mm |
| Dimensions of Base Worktable Surface | 520mm x 310mm |
| Overall Height | 1220 mm |
| Motor | 750 W |
| Volts | 220~240V, Single Phase |
| Weight | 102 kg |
