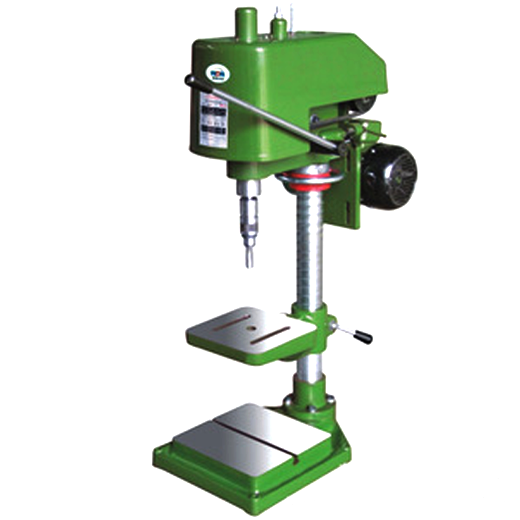

Xest Ling Tapping Machine M24, 1100W, 480rpm, 140kg SWJ-24
Xest Ling Tapping Machine M24, 1100W, 480rpm, 140kg SWJ-24

Xest Ling Tapping Machine M24, 1100W, 480rpm, 140kg SWJ-24

Product Code: SWJ-24
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Model: SWJ-24
SWJ series tapping machine.

Price inclusives 6% GST.

Features

  • Simple structure and easy operation.
  • It uses machinery friction clutch make which prolong the life of motor working stable and low noise and also has the over loading protection function.
  • It can tapping continuosly widely used at all kind of machinery, instrument, hardware tools and so on.

Specifications

Max. Tapping Capacity   Cast Iron: M24
Steel: M22
Max. Drilling Capacity N/A
Diameter of Column 70 mm
Spindle Travel 50 mm
Distance Spindle Axis to Column Surface 198 mm
Max. Distance Spindle Nose to Workable 545 mm
Max. Distance Spindle Nose to Base 760 mm
Spindle Taper B22
Spindle Speeds Range 180, 320, 480rpm
Spindle Speeds 3
Dimensions of Worktable Surface 280mm x 280mm
Dimensions of Base Worktable Surface 495mm x 375mm
Overall Height 1075 mm
Motor 1100 W
Volts 220~240V, Single Phase
Weight 140 kg
