Xest Ling ZQD4125: Bench Drill, Drilling Capacity:25mm, Motor:750Watts, Spindle Speed:2280rpm, 115kg

Xest Ling ZQD4125: Bench Drill, Drilling Capacity:25mm, Motor:750Watts, Spindle Speed:2280rpm, 115kg

Product Code: Xest Ling ZQD4125: Bench Drill, Drilling Capacity:
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

Description

Model: ZQD4125

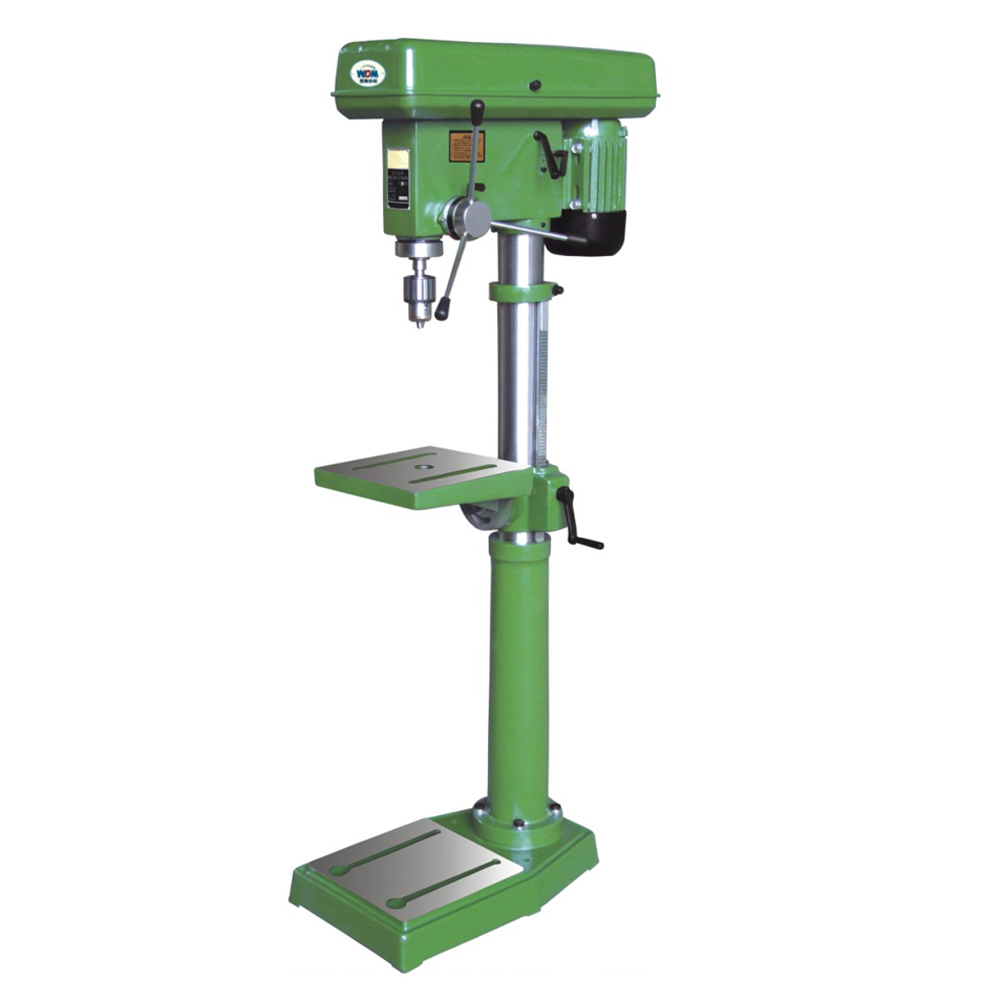

Xest Ling ZQD4125 light duty bench drilling machine.

Features

  • Belt driven, Low noise
  • The belt will skid when the machine is overload
  • Mainly use in repair area and family

Specifications

Max Drilling Capacity 25mm
Diameter of column 85mm
Spindle Travel 110mm
Distance spindle axis to column surface 200mm
Max. Distance spindle nose to worktable 490mm
Max. Distance spindle nose to base 1240mm
Spindle Taper MT3
Spindle Speeds Range 200~2280rpm
Spindle speeds 9
Dimensions of worktable surface 280mm x 280mm
Dimension of base worktable surface 566mm x 356mm
Overall Height 1680mm
Motor 750W
Weight 115kg



Description

Model: ZQD4125

Xest Ling ZQD4125 light duty bench drilling machine.

Features

  • Belt driven, Low noise
  • The belt will skid when the machine is overload
  • Mainly use in repair area and family

Specifications

Max Drilling Capacity 25mm
Diameter of column 85mm
Spindle Travel 110mm
Distance spindle axis to column surface 200mm
Max. Distance spindle nose to worktable 490mm
Max. Distance spindle nose to base 1240mm
Spindle Taper MT3
Spindle Speeds Range 200~2280rpm
Spindle speeds 9
Dimensions of worktable surface 280mm x 280mm
Dimension of base worktable surface 566mm x 356mm
Overall Height 1680mm
Motor 750W
Weight 115kg
