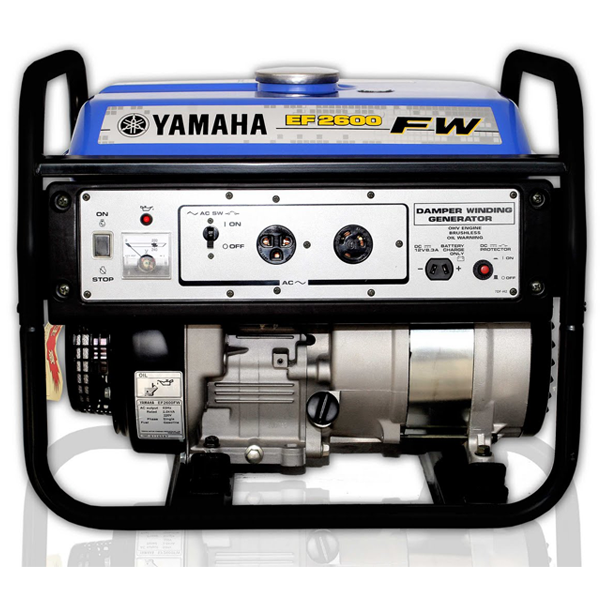

Yamaha Half Inverter 2000W, 65dB, 12L Tank, 41kg EF2600FW

Product Code: EF2600FW

Availability: Pre Order

Model: EF2600FW

Price inclusive 6% GST.

Features

Damper winding adopted for greatly reduced waveform distortion ratio.
Adding a damper winding (short-circuit ring) to the alternator’s rotor serves to correct the distortions in magnetic flux occurring during electricity generation and makes it possible to greatly reduce waveform distortion ratio by adding a skew to the alternator core. This greatly expands the ange of electric appliances the generator can be used with to include those operating with microcomputer control.

DC output, twist-lock outlet added
A DC outlet has been added to the EF2600FW for uses like charging batteries. Also, a twist-lock type socket has been adopted to prevent disconnecting during moving or running of the generator (ground fitted). These features provide greater functionality and convenience.

Specifications

Generator Type	Bi-polar revolving field / with damper winding
Rated Voltage (V)	220
Frequency (Hz)	50
Rated Output (kVA)	2.0
Max. Output (kVA)	2.3
DC Output	12V / 8.3A
Engine Type	MZ175: 4-Stroke OHV forced air cooled
Starting System	Recoil
Dimensions (L x W x H)	510mm x 415mm x 425mm
Dry Weight (kg)	41
Fuel Tank Capacity (Liters)	12.0
Operating Hours (Hr)	10.6
Noise Level (dbA)(7m)	65.0
Brushless	Yes
Voltage Regulator	Condensor
Auto Decompressor	Yes
Dual Voltage	No
Circuit Breaker System	AC: N.F.B / DC: Protector
Fuel Level Gauge	Yes
Oil Level Warning System	Yes
Voltage Meter	Yes
Pilot Lamp	No
Waveform Distortion	Less than 5% (No Load) Less than 7% (rated load)
