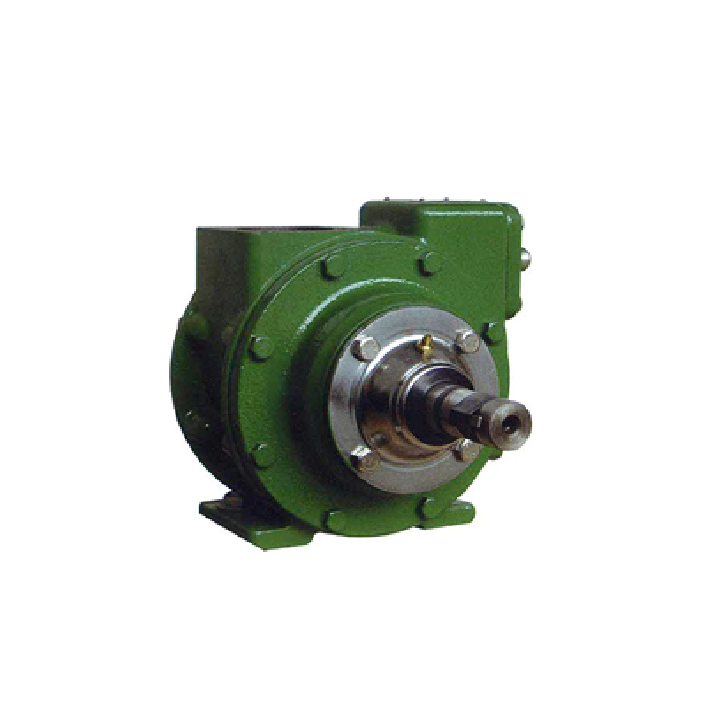

YB Series Rotary Vane Pump (II)
Product Code: YPUMP-YB-50
Availability: Pre Order
YB Series self priming rotary vane pump with internal by-pass valve. The pumps use a rotor with sliding vanes to draw the liquid. The material of construction is nodula iron with sliding vanes built in a special self lubracting material. Due to its efficiency the pump can handle viscous and also volatile liquids and require less horsepower than other equivalent pumps. The pumps are capable of higher flow rates at lower number of revolutions than others designs.
- Durable pumps for fast and quiet operation
- Sliding vane design provides sustained performance and trouble free operation, high reliability
- Adjustable relief valve protect pump from excessive pressure
- T-type strainers are available to protect pumping system from damage caused by welding slag and foreign matter in the piping and tanks
| Model | Pump Size | Flow rate | Flow rate | Flow rate | Flow rate | Flow rate | Flow rate |
| 650rpm | 600rpm | 550rpm | 500rpm | 450rpm | 400rpm | ||
| G/M(L/M) | G/M(L/M) | G/M(L/M) | G/M(L/M) | G/M(L/M) | G/M(L/M) | ||
| YPUMP-YB-50 | 2" | 80(300) | 72(270) | 64(240) | 56(210) | 48(180) | 40(150) |
| YPUMP-YB-65 | 2.5" | 132(500) | 123(456) | 114(430) | 103(390) | 93(350) | 82(310) |
| YPUMP-YB-80 | 3" | 265(1000) | 243(920) | 222(840) | 200(760) | 180(680) | 160(160) |
| YPUMP-YB-100 | 4" | - | - | - | 505(1900) | - | 405(1530) |
| PUMP MODEL | RATED PUMP SPEED | hp | kW | WEIGHT | PACKING |
| YPUMP-YB-50 | 640RPM | 3 | 2.2 | 34KG | 44X33X39 |
| YPUMU-YB-65 | 640RPM | 5 | 4 | 40KG | 44X33X39 |
| YPUMP-YB-80 | 640RPM | 10 | 7.5 | 64KG | 45X40X38 |
| YPUMP-YB-100 | 500RPM | 25 | 18.5 | 160KG | 54X49X58 |
