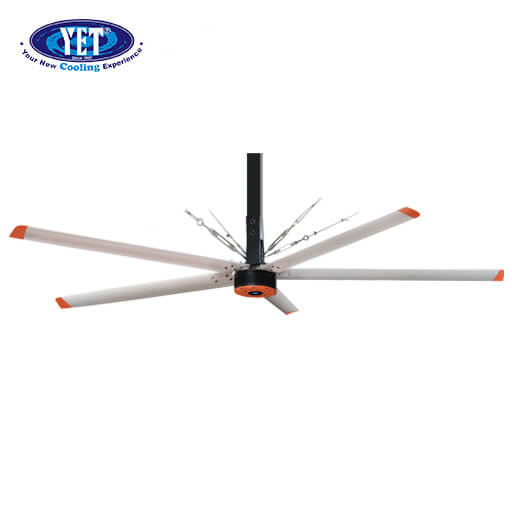

YET INDUSTRIAL CEILING HVLS FAN ICF-08

YET INDUSTRIAL CEILING HVLS FAN ICF-08
YET INDUSTRIAL CEILING HVLS FAN ICF-08

YET INDUSTRIAL CEILING HVLS FAN ICF-08

Product Code: ICF-08
Availability: Pre Order
Loading ...
Share:

Features and Benefits:

  • Power Technology
    Permanent magnet external rotor motor, high efficiency an energy saving, small volume and light weight
  • Blade Technology
    Blade design of high lift drag ratio airfoil with high strength, light weight, impact resistance, anti-aging & long life service
  • Safety Technology
    Adopt 11 safety protection structure, simulate all kind of extreme condition that may appear in using process, so as to ensure the safe operation without failure
  • Control Technology
    Developed in cooperation with professional manufacturer of frequency converter, with over-current protection, over/under-voltage protection, overload protection, and effective matching with fans.
  • Wingtip Technology
    Install patent designed wingtip guide plate. Effectively reduce the air to be vortex in the movement of the end of streamlined blade. Reduce the energy loss caused by vortex and improve efficiency.
  • Warranty
    – 1 year on installation workmanship labour
    – 5 years warranty on inverter VSD control panel
    – 5 years warranty on motor

Description

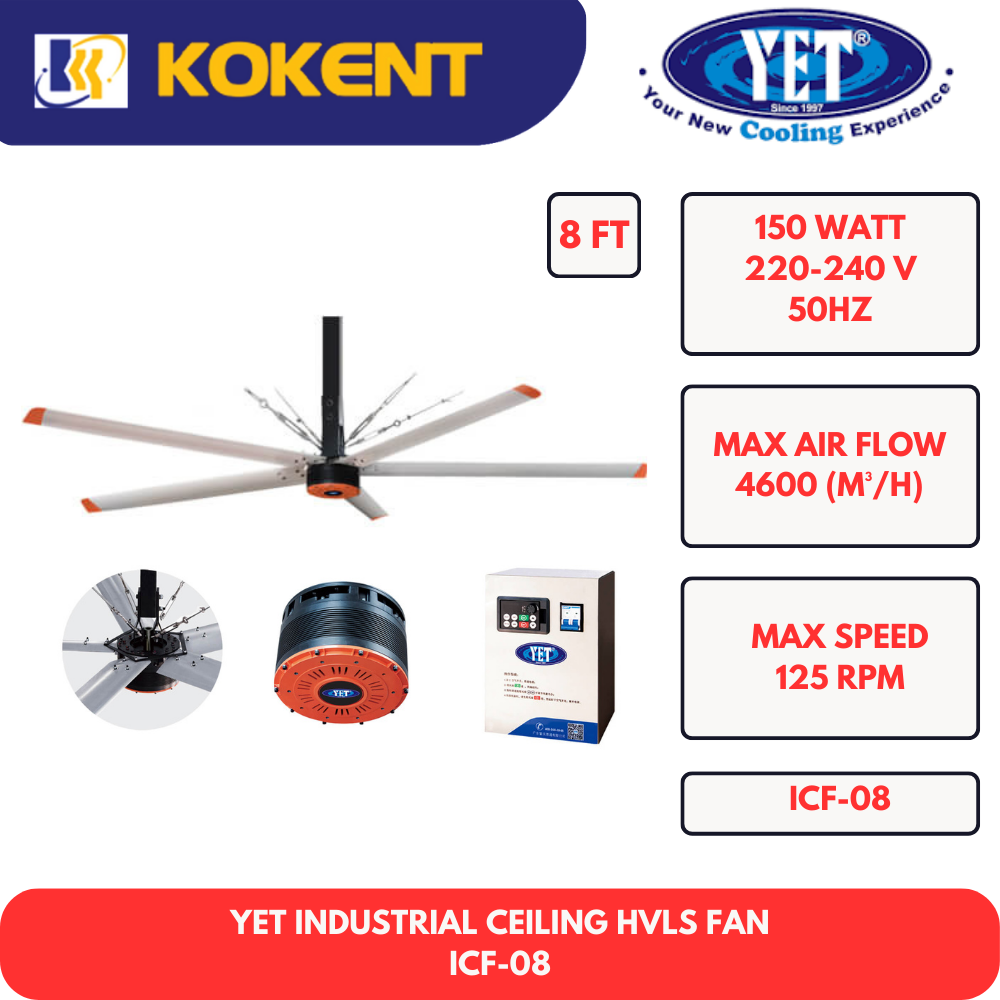

Blade Diameter (ft) 08
Max Air Flow (m³/h) 4600
Max Speed (RPM) 125
Power (W) 150
Voltage 220V – 240V, 50Hz
Noise (dB) ≤39
Max Air Covering (m²) 240
Weight (KG) 79
Warranty 1 Year Installation
Warranty 5 Years on Inverter
Warranty 5 Years on Fan Motor
