HCP SUBMERSIBLE AGITATOR SLURRY SUBMERSIBLE WATER PUMP 80HDG22.2

HCP SUBMERSIBLE AGITATOR SLURRY SUBMERSIBLE WATER PUMP 80HDG22.2
HCP SUBMERSIBLE AGITATOR SLURRY SUBMERSIBLE WATER PUMP 80HDG22.2

HCP SUBMERSIBLE AGITATOR SLURRY SUBMERSIBLE WATER PUMP 80HDG22.2

Product Code: 80HDG22.2
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: 80HDG22.2

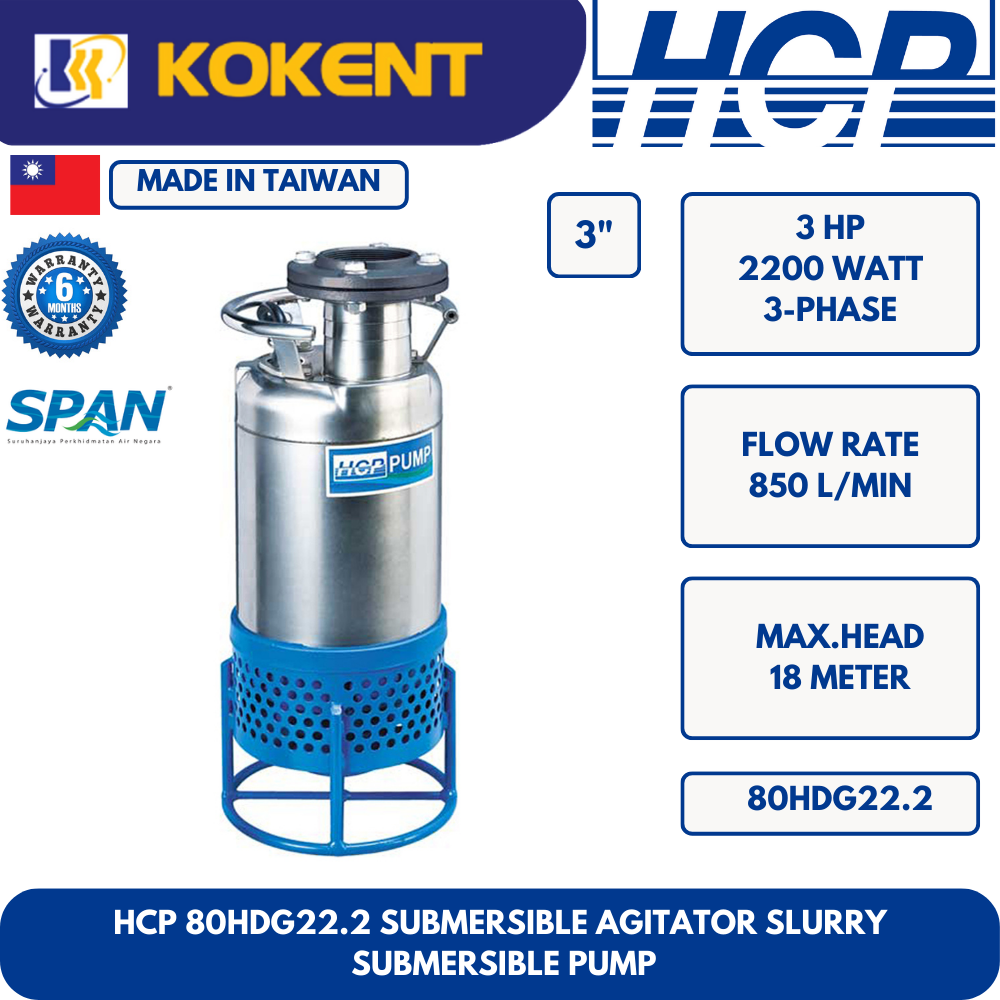

HCP 80HDG22.2 (made in Taiwan) is submersible slurry dewatering pump for civil engineering, dewatering, tunnel, ground works, mining & manhole sewer.

  • Carry with Outlet Flange
  • 3 phase
  • Former Model: 80AGN22.2

Features

  • Designed for civil engineering applications; its easy portability, double outer casing and water cooling motor make it possible to run the pump to low water level.
  • The pumps are durable and leakproof structure with automatic resetting motor protection and double mechanical seals made of silicon carbide.
  • The internal casting is coated with High Solid Epoxy coating to prolongs metals from corrosion and oxidisation.
  • Multi-impeller design with High Chrome Alloy Steel (HiCrFC) impeller, wear plate and wear rings with a hardness if 55-60 Rockwell. It is the hardest and toughest impeller among the construction pump and against abrasion.
  • The pumps are durable with Epoxy Resin Cable, IP68 waterproof structure, automatic resetting and double mechanical seal made of silicon carbide.

Applications

  • Civil engineering, dewatering, tunnel, ground works, mining and manhole sewer.
  • Industrial wastewater dewatering or recycling fluids containing solid sediments for Gravel pit, Sand and Gravel plant.
  • Mobile use for contractors, installers and industries.

Specifications

Power 3 HP (2200 watts)
Discharge 3″ (80mm)
Phase
Start Method Direct
Efficient / Maximum Head 13 / 18 meters
Efficient / Maximum Flow Rate 500 / 850 L/min
Solid Passage 10mm
Weight 40 kg
