Description

Model: 80HD23.7

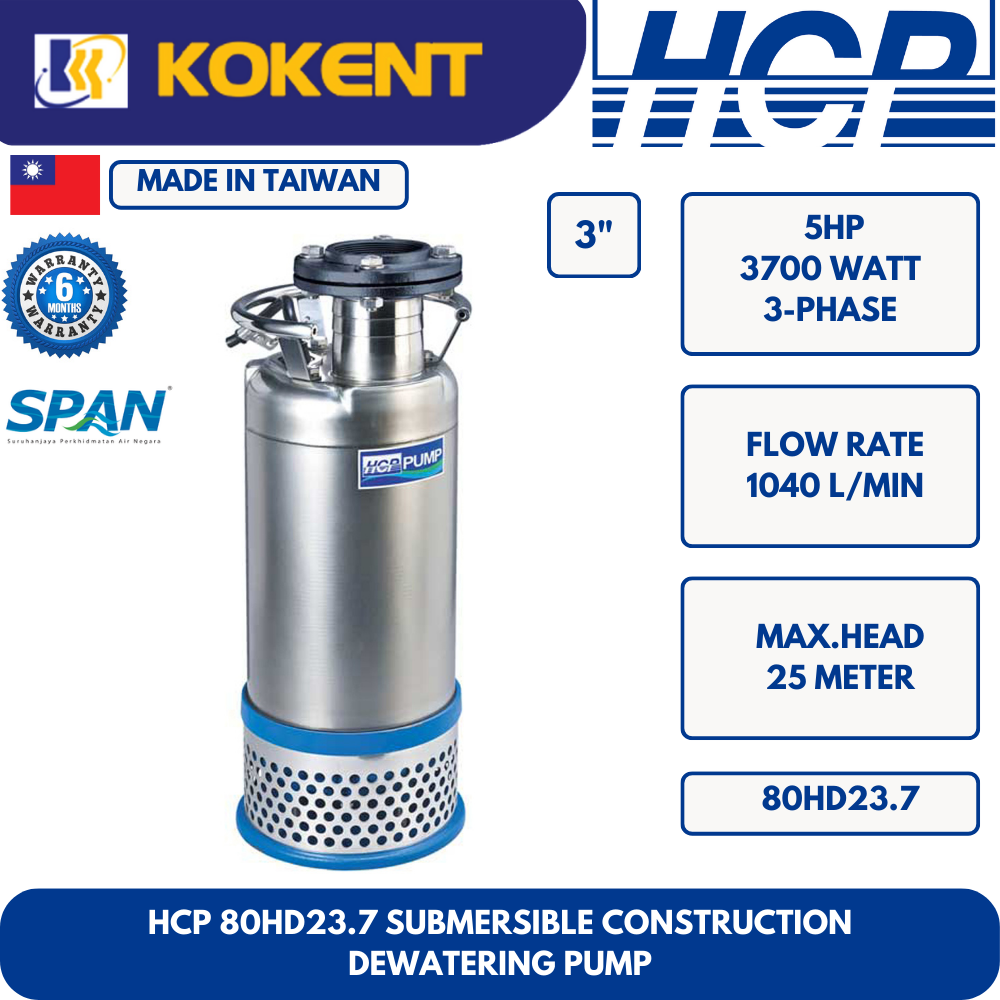

HCP 80HD23.7 (made in Taiwan) is submersible dewatering pump for civil engineering, dewatering, tunnel, ground works, mining & manhole sewer.

  • Carry with Outlet Flange
  • 3 phase
  • Former Model: 80ASN23.7

Features

  • Designed for civil engineering applications; its easy portability, double outer casing and water cooling motor make it possible to run the pump to low water level.
  • The pumps are durable and leakproof structure with automatic resetting motor protection and double mechanical seals made of silicon carbide.
  • The internal casting is coated with High Solid Epoxy coating to prolongs metals from corrosion and oxidisation.
  • Multi-impeller design with High Chrome Alloy Steel (HiCrFC) impeller, wear plate and wear rings with a hardness if 55-60 Rockwell. It is the hardest and toughest impeller among the construction pump and against abrasion.
  • The pumps are durable with Epoxy Resin Cable, IP68 waterproof structure, automatic resetting and double mechanical seal made of silicon carbide.

Applications

  • Civil engineering, dewatering, tunnel, ground works, mining and manhole sewer.
  • Industrial wastewater dewatering or recycling fluids containing solid sediments for Gravel pit, Sand and Gravel plant.
  • Mobile use for contractors, installers and industries.

Specifications

Power 5 HP (3700 watts)
Discharge 3″ (80mm)
Phase
Start Method Direct
Efficient / Maximum Head 21.5 / 25 meters
Efficient / Maximum Flow Rate 500 / 1040 L/min
Solid Passage 10mm
Weight 44 kg
