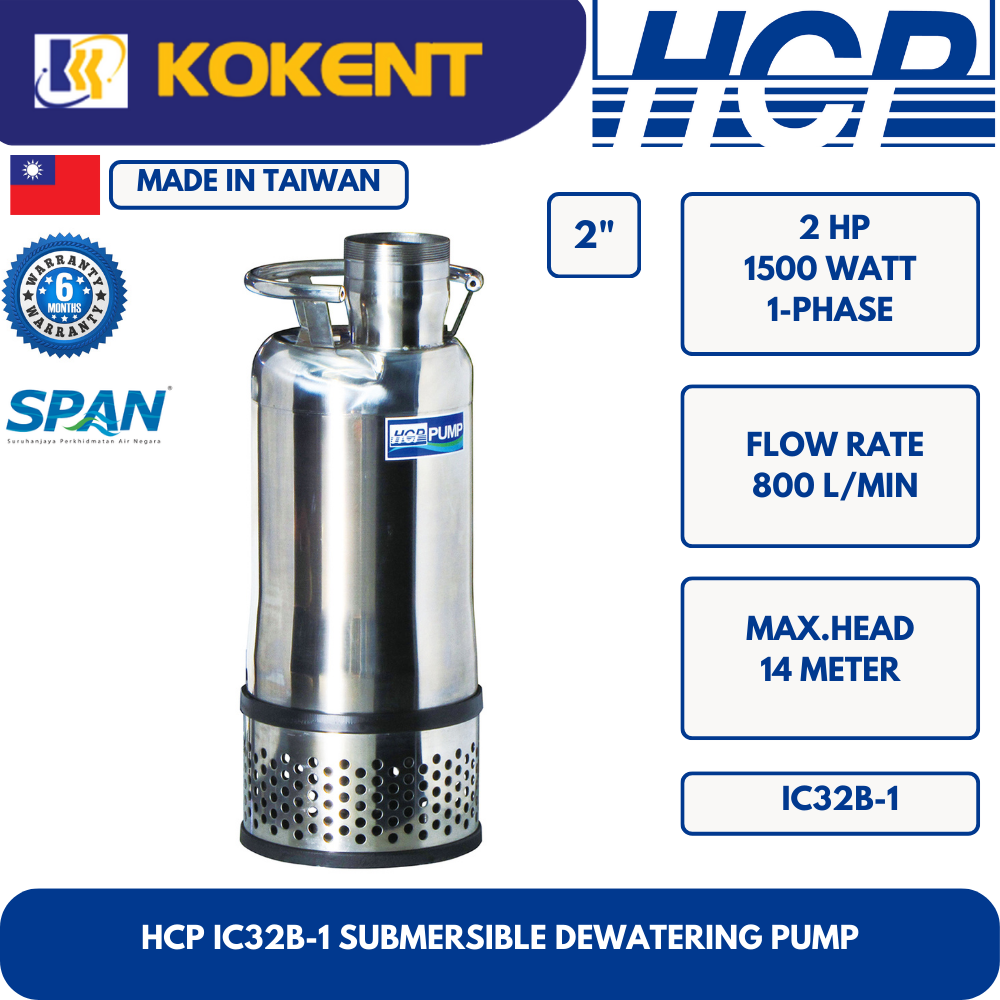

HCP SUBMERSIBLE DEWATERING PUMP IC32B

HCP SUBMERSIBLE DEWATERING PUMP IC32B
HCP SUBMERSIBLE DEWATERING PUMP IC32B

HCP SUBMERSIBLE DEWATERING PUMP IC32B

Product Code: IC32B
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: IC32B

HCP IC32B (made in Taiwan) is submersible dewatering pump for agriculture water supply.

  • 1 phase

Features

  • The internal casting is treated with high solid painting, which can double the duration of anti-rusting, and extend the lifetime of the product.
  • Standard design, incorporating a dry motor with thermal auto-cut that prevents the motor from over heating, and a cast iron motor frame for a faster heat dissipation. As well as an abrasion resistant double mechanical seal and an additional oil seal.
  • Water cooled motor to ensure a long life in continuous and intermittent operation, with high efficiency and energy savings.
  • An exceptional High-lift and suction impeller design, which allow for dewatering of underground or circulating water applications.
  • For above or below surface water applications; the IC pump strainer can be easily removed and replaced with a check valve, which allows for dewatering up to max. 8m deep of underground water and water circulation applications. (W–Well Type)
  • New casing cover, with metric thread bolt hole that is easier for valve and adapter connection.
  • High solids Epoxy coating prolong metals from corrosion and oxidisation.

Applications

  • Agriculture water supply and drainage.
  • Water supply for agricultural irrigation systems and underground water pumping.
  • Landscape, water feature and horticulture irrigation.
  • Extraction of water from rivers, lakes and reservoirs.

Limits of use

  • Liquid temperature: 0~40°C (32~104)
  • Submersion Depth: 30m (100 ft)

Specifications

Power 2 HP (1500 watts)
Discharge 3″ (80mm)
Phase
Start Method Capacitor
Efficient / Maximum Head 9.5 / 14 meters
Efficient / Maximum Flow Rate 500 / 800 L/min
Solid Passage 10mm (3/8″)
Weight 40 kg
