HCP SUBMERSIBLE GRINDER PUMP 32GF21.5-3

HCP SUBMERSIBLE GRINDER PUMP 32GF21.5-3
HCP SUBMERSIBLE GRINDER PUMP 32GF21.5-3

HCP SUBMERSIBLE GRINDER PUMP 32GF21.5-3

Product Code: 32GF21.5-3
Availability: Pre Order
Loading ...
Share:

PREFER CONTACT KENT

Description

Model: 32GF21.5

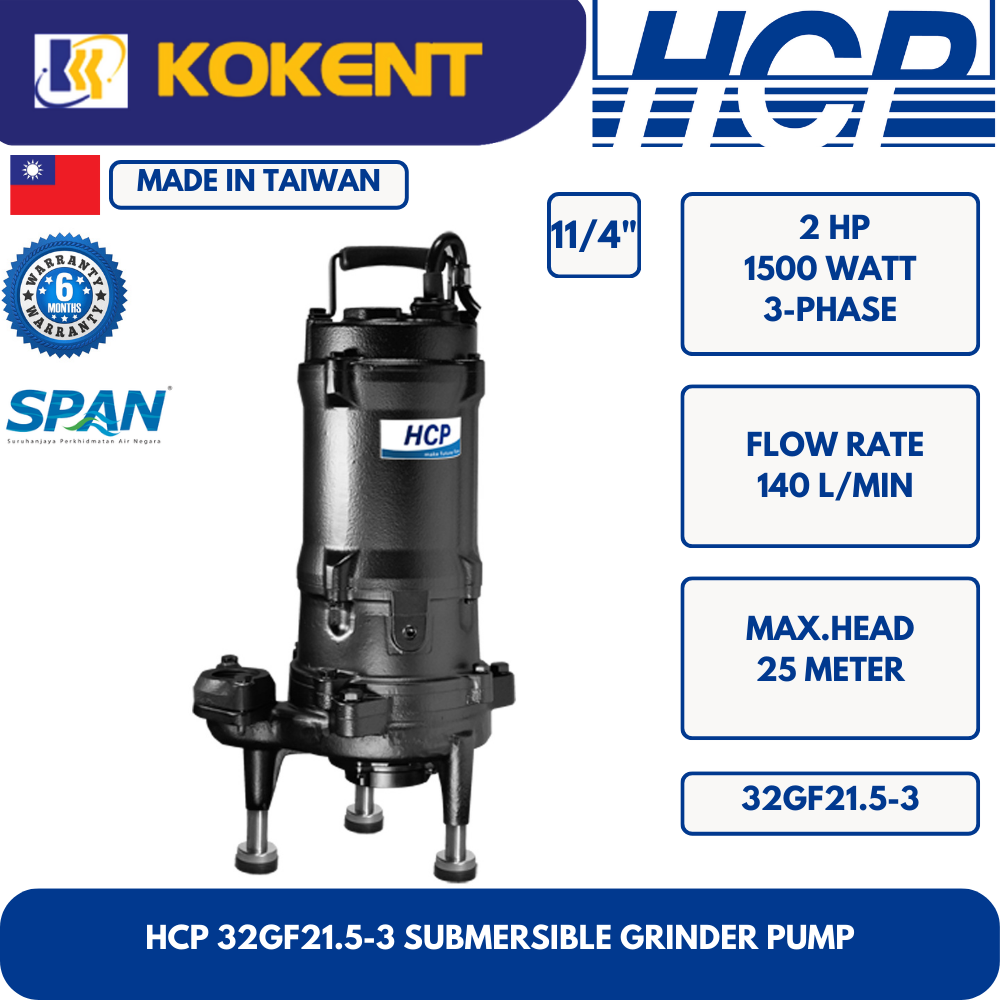

HCP 32GF21.5 (made in Taiwan) is a submersible pump for sewage water.

  • 3 phase

Features

  • Standard accessories include : epoxy resin cable base, dry motor, double mechanical seals, auto-cut protection, double ball bearing support shaft and rotor
  • Vortex impeller design prevents clogging by cutting up articles.
  • Radial cutter and cutter ring : corrosion resistant material, hardened to 55-60 Rockwell C.
  • Specific single phase design for starting torque, and its torque is five times stronger than General capacitor pump. The impeller can prevent from clogging when grinding the objectives.

Applications

  • Used in pressure sewage system.
  • Drainage of wastewater from individual residences, apartment buildings, recreational developments, motels.
  • Transferring wastewater of commercial buildings, industrial plants, wastewater sampling, small hospitals.
  • Schools, federal, state and local parks, wastewater drainage.
  • To transfer various wastewater and sewage.

Specifications

Power 2 HP (1500 watts)
Discharge 1¼” (32mm)
Phase
Start Method Direct
Efficient / Maximum Head 23 / 25 meters
Efficient / Maximum Flow Rate 60 / 140 L/min
Solid Passage
Weight 32 kg
