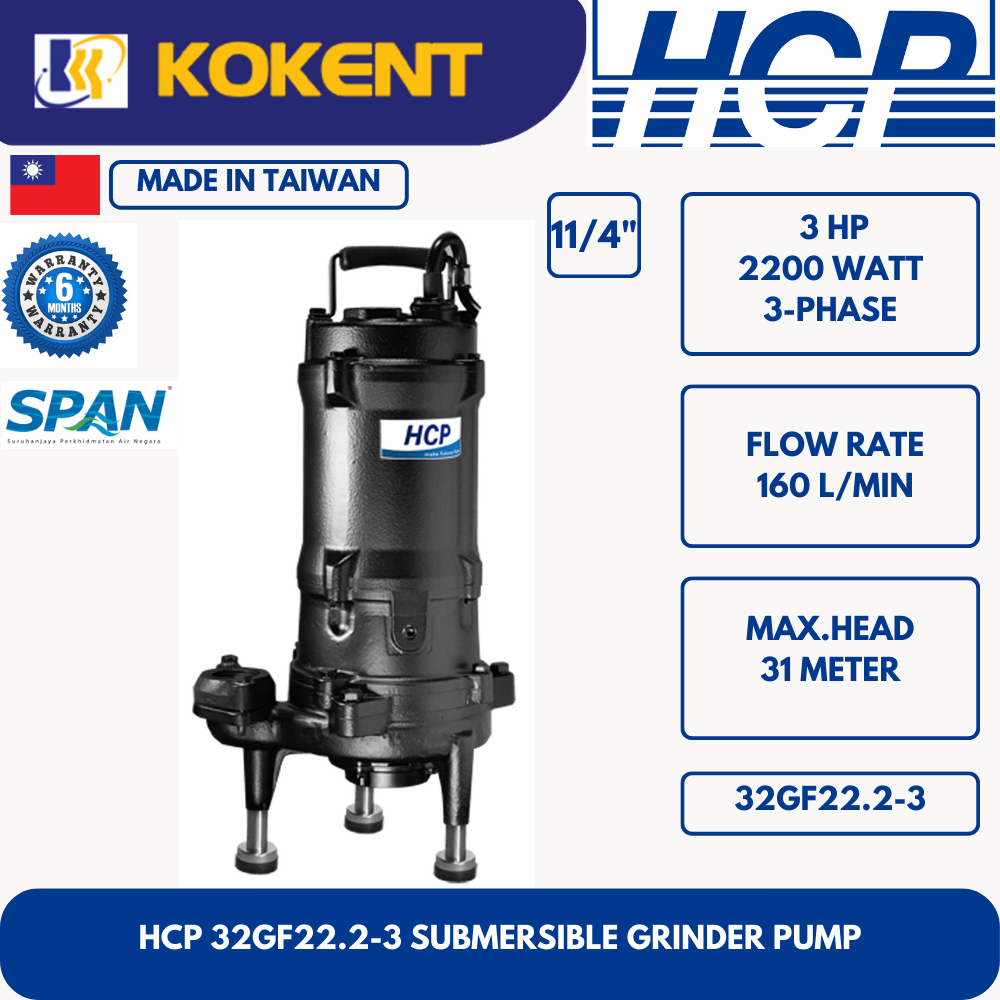

HCP SUBMERSIBLE GRINDER PUMP 32GF22.2-3
Product Code: 32GF22.2-3
Availability: Pre Order
PREFER CONTACT KENT
Description
Model: 32GF22.2
HCP 32GF22.2 (made in Taiwan) is a submersible pump for sewage water.
- 3 phase
Features
- Standard accessories include : epoxy resin cable base, dry motor, double mechanical seals, auto-cut protection, double ball bearing support shaft and rotor
- Vortex impeller design prevents clogging by cutting up articles.
- Radial cutter and cutter ring : corrosion resistant material, hardened to 55-60 Rockwell C.
- Specific single phase design for starting torque, and its torque is five times stronger than General capacitor pump. The impeller can prevent from clogging when grinding the objectives.
Applications
- Used in pressure sewage system.
- Drainage of wastewater from individual residences, apartment buildings, recreational developments, motels.
- Transferring wastewater of commercial buildings, industrial plants, wastewater sampling, small hospitals.
- Schools, federal, state and local parks, wastewater drainage.
- To transfer various wastewater and sewage.
Specifications
| Power | 3 HP (2200 watts) |
| Discharge | 1¼” (32mm) |
| Phase | 3Ø |
| Start Method | Direct |
| Efficient / Maximum Head | 28 / 31 meters |
| Efficient / Maximum Flow Rate | 60 / 160 L/min |
| Solid Passage | – |
| Weight | 35 kg |
