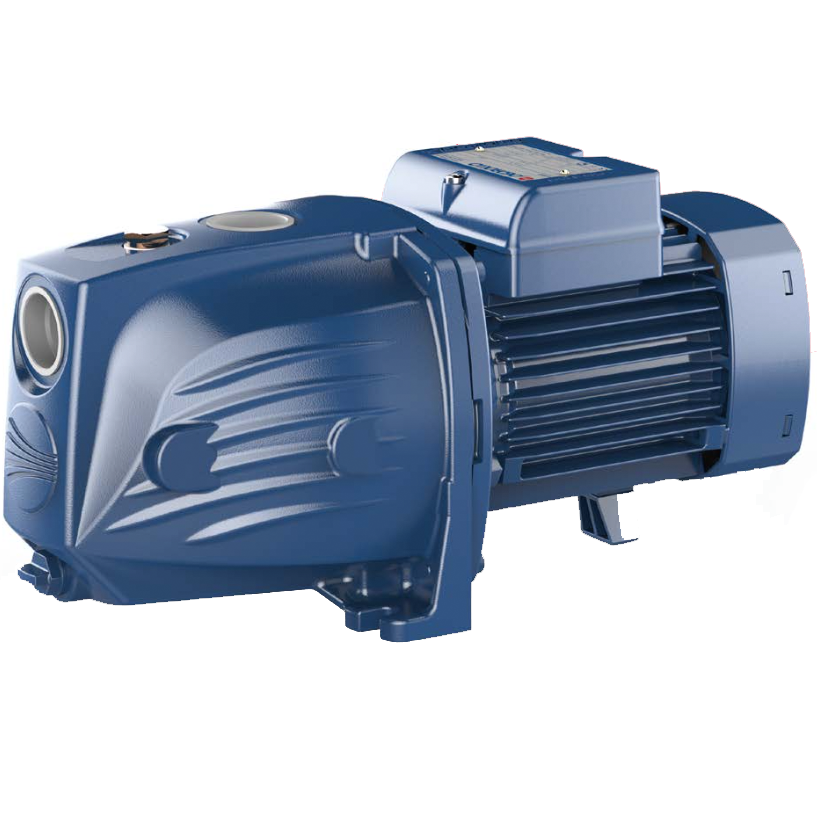

JET Self Priming Pump 1100W, 10~70L/min, 60~31m JSWm3CH
Product Code: JSWm3CH
Availability: In Stock
Model: JSWm3CH
Price inclusives 6%GST.
Descriptions
- Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
- The self-priming JSW pumps are designed to pump water even in cases where air is present.
- As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic, civil and industrial applications such as the distribution of water in combination with pressure sets, and for the irrigation of gardens and allotments, etc.
- The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
Pumped liquid: clean water
Use: domestic
Type: surface
Family: self-priming
Performance Range
- Flow rate up to 160 l/min (9600l/h)
- Head up to 96m
Application Limits
- Manometric suction lift up to 9 m (HS)
- Liquid temperature between -10 °C and +40 °C
- Ambient temperature up to +40°C
- Max. working pressure 10 bar
- Continuous service S1
Specifications
| Size Discharge | 1-1/4" x 1" |
| Power | 1100 W / Single phase |
| Flow Rate | 10 ~ 70 L/min |
| Head | 60 ~ 31 meters |
| Manometric Suction Lift | Max. 9 meters |
| Liquid Temperature | Max. +40°C |
| Environment Temperature | Max. +40°C |
| Dimensions (L x W x H) | 530mm x 206mm x 242mm |
| Weight | 24.9 kg |
