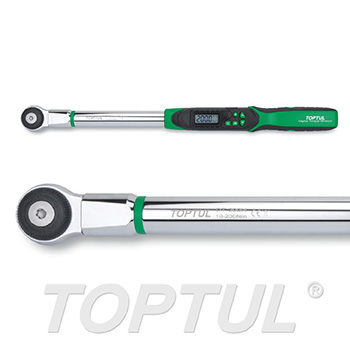

Toptul Digital Torque Wrench with Reversible Ratchet Insert Tool

Product Code: DT-030I2 / DT-135I3 / DT-200I4 / DT-340I4

Availability: In Stock

RM0.00

017 432 8850 016 397 5838

Description

Torque Wrenches

Digital Torque Wrench with Reversible Ratchet Insert Tool

ITEM NO: DT-030I2 / DT-135I3 / DT-200I4 / DT-340I4
Torque Accuracy: CW ±2% & CCW ±3% tolerance of the set scale value
Operating mode: Peak hold mode (peak value detection) / Track mode (continuous display)
Torque Unit Selection: Nm, Ft-Lb, In-Lb, Kg-cm
Storage Memory: 50 Readings
12 way lights and buzzer when torque value is reached
Low battery indicator and auto shut off (after 5 minutes)
The ratchet is exchangeable, providing the option of using a 9x12 mm or 14x18 mm head size
2 Position, 52 Teeth Ratcheting Mechanism: Forward / Reverse
Ergonomically designed bi-component soft grip handle
Tested and certified according to DIN EN ISO 6789, BS EN 26789, ASME B107.28

Features

Torque Accuracy	CW ± 2% / CCW ±3 %
Storage Memory	50 Readings
Torque Unit Selection	Nm, Ft-Lb, In-Lb, Kg-cm
Operating Mode	Peak Hold Mode / Track Mode
Head Size (W x H)	9 x 12mm - DT-030I2 & DT-135I3 14 x 18 mm - DT-200I4 & DT-340I4
Head Type	Round Head Ratchet Insert
Gear Teeth	52 Teeth
Ratcheting Mechanism	Clockwise / Counterclockwise
Working Temperature	-10℃ ~ 60℃
Storage Temperature	-20℃ ~ 70℃
Humidity	Up to 90% non-condensing
Battery	1.5V AA x 2pcs
Battery Life	110 Hours
Auto Shut Off	5 Minutes (when not in use)

ITEM NO.	HEAD SIZE (mm)	Torque Range				Reversible Ratchet	L (mm)	CTN (PCS)
ITEM NO.	HEAD SIZE (mm)	(Nm)	(Ft-Lb)	(In-Lb)	(Kg-cm)	Reversible Ratchet	L (mm)	CTN (PCS)
DT-030I2	9x12	1.5~30	1.11~22.12	13.3~265.5	15.3~306.1	1/4"	390	6
DT-135I3	9x12	6.8~135	5.0~99.5	60~1195	69~1378	3/8"	410	6
DT-200I4	14x18	10~200	7.4~147.5	88~1770	102~2041	1/2"	520	6
DT-340I4	14x18	17~340	12.5~250.7	150~3009	173~3469	1/2"	640	6
