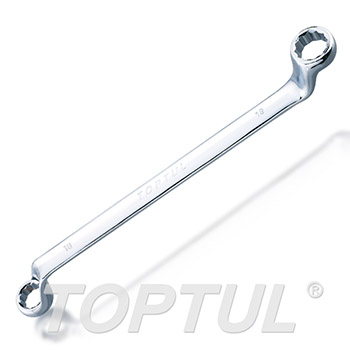

Toptul Double Ring Wrench 75° Offset - SAE (Mirror Polished)

Toptul Double Ring Wrench 75° Offset - SAE (Mirror Polished)
Toptul Double Ring Wrench 75° Offset - SAE (Mirror Polished)

Toptul Double Ring Wrench 75° Offset - SAE (Mirror Polished)

Product Code: ACAI
Availability: In Stock
RM0.00
Loading ...
Share:

Double Ring Wrench 75° OffsetDouble Ring Wrench 75° Offset - SAE (Mirror Polished)

Double Ring Wrench 75° Offset - SAE (Mirror Polished)


 ITEM NO: ACAI series
 Chrome Vanadium Steel Material
 75° offset ring end in design for convenient operation in recess
 High torque performance as over 1.6 times as ANSI & DIN standard
 Mirror Polished
 SAE

Features



ITEM NO. SIZE
(inch)
L
(mm)
B
(mm)
D
(mm)
S1
(mm)
S2
(mm)
BOX
(PCS)
CTN
(PCS)
Mirror
ACAI1416 7/16x1/2 217 18.0 21.0 8.7 9.0 10 80
ACAI1820 9/16x5/8 238 22.0 23.5 9.0 9.5 10 80
ACAI2022 5/8x11/16 258 25.5 26.5 10.5 11.0 5 40
ACAI2224 11/16x3/4 290 26.5 29.5 11.0 12.0 5 40
ACAI2426 3/4x13/16 296 28.5 32.5 11.5 12.5 5 30
ACAI3032 15/16x1 328 37.2 40.5 12.5 14.1 5 30
ACAI3640 1-1/8x1-1/4 360 45.3 48.5 15.0 16.5 2 12
