Product Code: UVP10-100
Availability: Pre Order
Loading ...
Share:

DESCRIPTION

MODEL: UVP10-100

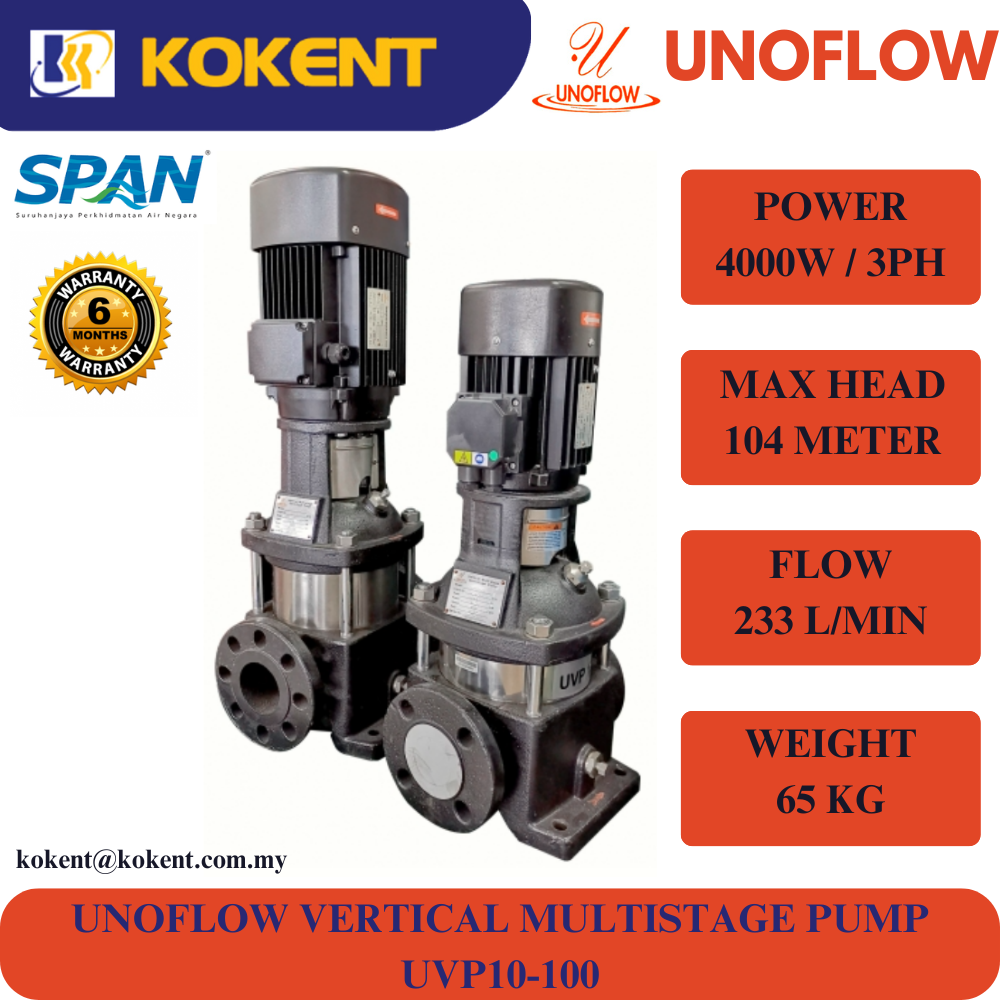

Unoflow UVP10-100 vertical multistage centrifugal water pump.

  • 3 phase

INCLUDED FLANGE ASSEMBLY

  • Flange x 2pc
  • Rubber gasket x 2pc
  • Bolt and Nuts x 8sets

FEATURES

  • Non-self priming vertical multistage centrifugal pump.
  • All pumps are equipped with a maintenance free mechanical seal set of the cartridge type.
  • Fan-cooled, 2-pole standard motor.
  • Motor protection
    a) Single phase: Built-in thermal overload switch.
    b) Three phase: Must be connected to a motor starter in accordance with local regulations.

AMBIENT TEMPERATURE

  • up to +40 °C

PUMP MATERIAL:

  • Cast iron Base
  • Stainless steel pump body

APPLICATIONS

  • Distributions of water.
  • Pressure boosting in high-rise building and hotels.
  • Pressure boosting in fire fighting systems.
  • Aqua farming.
  • Boiler feed and condensate systems.
  • Oil and alcohol; Glycol and coolants.
  • Swimming pool.
  • Field irrigation, sprinkler irrigation, drip-feed irrigation.

SPECIFICATIONS

Size Discharge 1½” x 1½”
Power 4000 W / Three phase
Flow Rate 33 ~ 233 L/min
Head 104 ~ 47 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature Max. +40°C
Dimensions (L x W x H) 280mm x 197mm x 931mm
Weight 65kg
