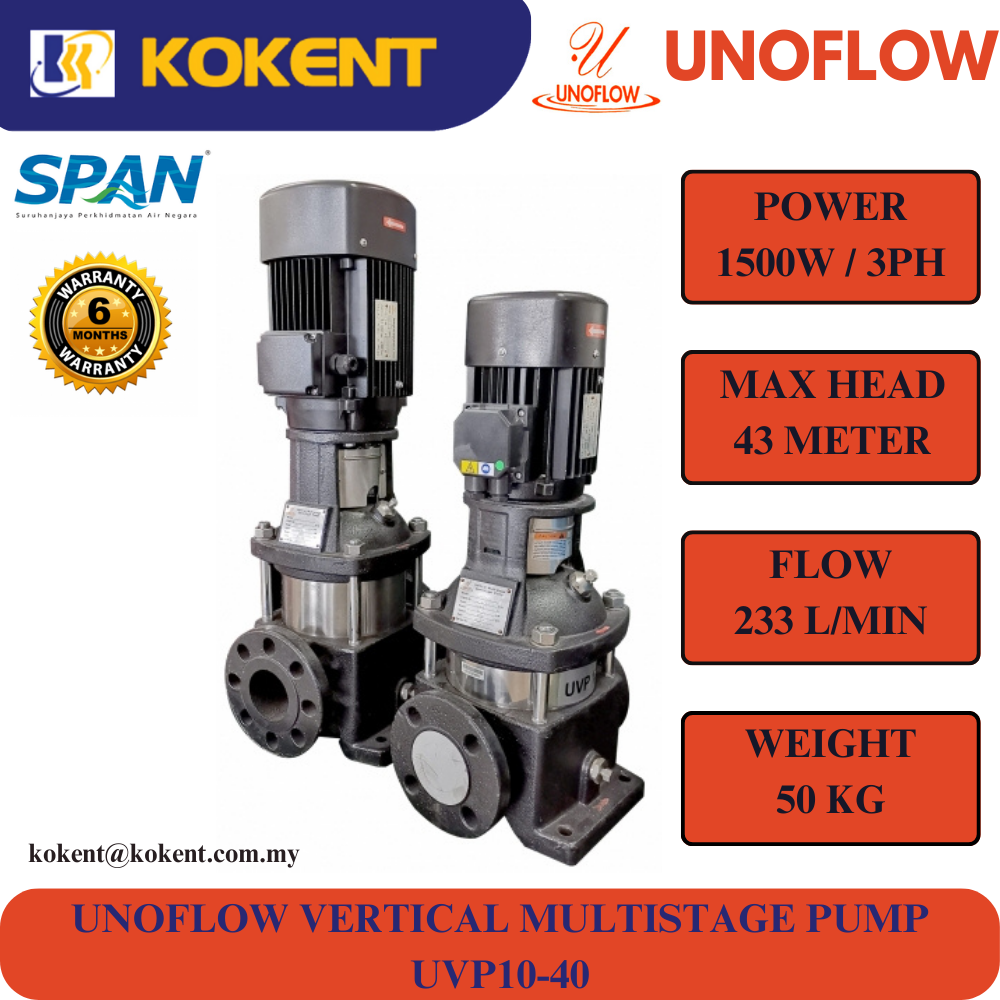

UNOFLOW VERTICAL MULTISTAGE WATER PUMP UVP10-40
Product Code: UVP10-40
Availability: Pre Order
Description
Model: UVP10-40
Unoflow UVP10-40 vertical multistage centrifugal water pump.
- 3 phase
Included Flange Assembly
- Flange x 2pc
- Rubber gasket x 2pc
- Bolt and Nuts x 8sets
Features
- Non-self priming vertical multistage centrifugal pump.
- All pumps are equipped with a maintenance free mechanical seal set of the cartridge type.
- Fan-cooled, 2-pole standard motor.
- Motor protection
a) Single phase: Built-in thermal overload switch.
b) Three phase: Must be connected to a motor starter in accordance with local regulations.
Ambient temperature
- up to +40 °C
Pump Material:
- Cast iron Base
- Stainless steel pump body
Applications
- Distributions of water.
- Pressure boosting in high-rise building and hotels.
- Pressure boosting in fire fighting systems.
- Aqua farming.
- Boiler feed and condensate systems.
- Oil and alcohol; Glycol and coolants.
- Swimming pool.
- Field irrigation, sprinkler irrigation, drip-feed irrigation.
Specifications
| Size Discharge | 1½” x 1½” |
| Power | 1500 W / Three phase |
| Flow Rate | 33 ~ 233 L/min |
| Head | 43 ~ 20 meters |
| Manometric Suction Lift | Max. 7 meters |
| Liquid Temperature | Max. +90°C |
| Environment Temperature | Max. +40°C |
| Dimensions (L x W x H) | 280mm x 154mm x 629mm |
| Weight | 50kg |
