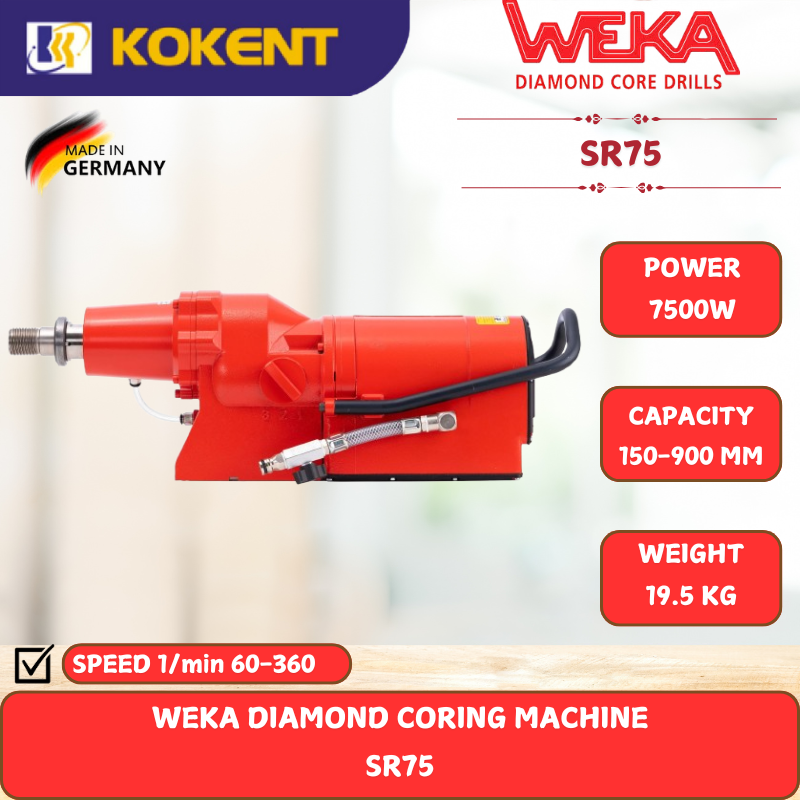

WEKA DIAMOND CORING MACHINE [ 7500W.150-900MM.19.5KG ] SR75

SR75 Diamond core drill

• Nominal power: 7500 W – 400 V
• Drilling diameter: 150 – 900 mm
• Number of gears: 15
• Wet drilling machine

Extreme powerful, water-cooled SR motor with 7500 W, robust construction thanks to full metal housing, gearbox with oil bath lubrication, overload clutch and oil pump, optional with water stop/automatic drill feed (s. accessories).

• Extreme powerful, water-cooled SR motor
• Low maintenance, as there are no carbon brushes and no rotating windings
• High performance – compact dimensions, low weight
• 15 finely tuned speeds
• Gearbox with oil bath lubrication, oil pump and high-performance overload clutch
• Splash-proof to IP55; suitable for drilling vertically upwards without further precautions
• Intuitive display with indication of drilling diameter and error output
• Soft turn – screw-on speed for easy installation of the drill bit
• optional with water stop/automatic drill feed (s. accessories)

• Large wet drilling in ceilings, floors, and walls.
• Penetrations for conduits and pipes.
• Perforation drilling.
• Large drilling for shafts and foundations.
