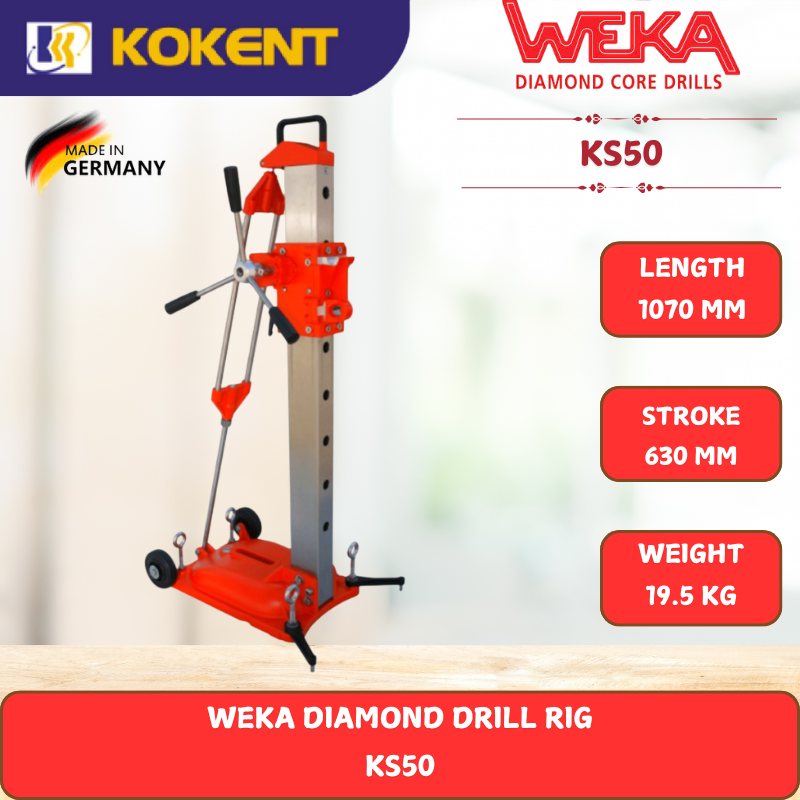

WEKA DIAMOND DRILL RIG [ 1070MM.19.5KG ] KS50

KS50 Drill rig

• Drill bit diameter: max. 500 mm
• Weight: 19.5 kg

Core drilling up to Ø 500mm, steel or aluminum stand base, stable sliding guide made of wear-resistant compound material ensures precise drilling, easy mounting of the drill thanks to quick-change system.

• Sturdy, torsion-resistant drill column made of stainless steel
• Extremely wear-resistant and low-maintenance sliding guides and plain bearings made of compound material
• Feed housing glides absolutely backlash-free
• Quick-release plate (accessory) for attaching the drill
• Fine feed to increase the feed force
• Combination foot (KS50) for dowel or vacuum fastening
• Gear rack made of wear-resistant steel
• Ergonomically designed handwheel can be changed without tools, easy selection of operating side
• Level indicator (KS50) and adjusting screws for exact alignment
• Transport castors and two adjustable swivel feet (KS50)
• Sealing ring and vacuum adapter as accessories
• Available in the cost-effective versions KS50E and KS50ES

• The KS 50 is characterized by a wide range of applications. Drilling for medium and large diameters across the entire construction sector can be done quickly and safely.
• The combined base with vacuum attachment allows use on special surfaces, such as tiles.
• Ideal for WEKA diamond core drilling machines, types DK26, DK32, SR25, SR38, DK42, and DK52.
