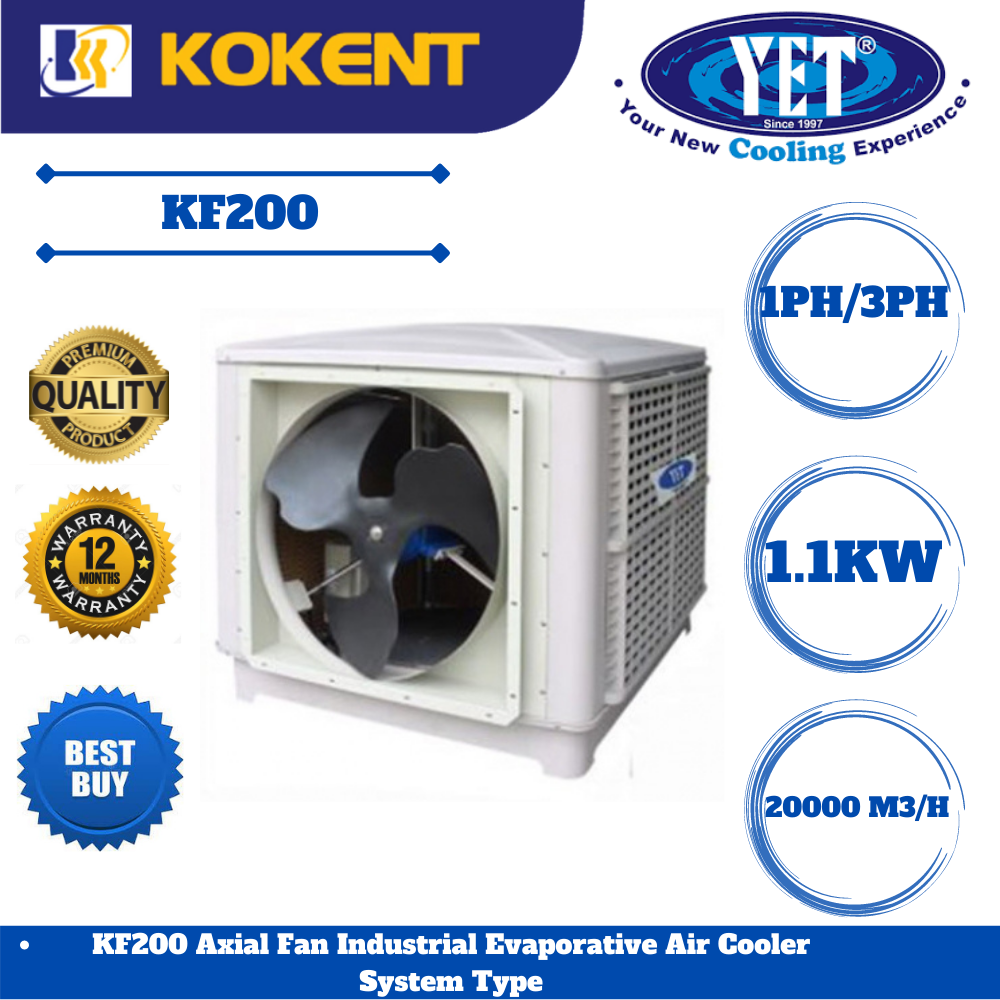

YET AXIAL FAN INDUSTRIAL EVAPORATIVE AIR COOLER SYSTEM TYPE KF200
Product Code: KF200
Availability: Pre Order
Highlights beyond Specs:
- Most suitable to be installed with G.I ducting
- Effective cooling at water temperature
- Powerful Air Flow >20000m3/hr
- Installed on wall for direct blow or ducting joint
- Up to 100m2 effective area coverage
- Save at least 80% electricity cost
- Water Tank capacity : 20L
- Power consumption : 1100 watts
- Durable and heavy duty
| Air Flow (m3/h) | 20000 |
| Air Pressure (Pa) | 180 |
| Effective Area (m2) | 80 ~ 100 |
| Power Supply (V, Hz) | 240V (1PH) or 415V (3PH), 50Hz |
| Motor Power (kW) | 1.1 |
| Dimension (m) | 1.05 (L) x 1.05 (W) x 0.94 (H) |
| Noise (dB) | < 68 |
| Water Consumption | 18 ~ 24 L/h |
| Speed | 12 (1PH) or 1 (3PH) |
| Net Weight (Kg) | 65 |
| Fan Type | Axial Fan (Low Static Pressure) |
| Send Wind Distance (m) | 15 ~ 18 |
| Arise Tuyere Size (mm) | 670 x 670 |
| Warranty | 6 months from YET® |
