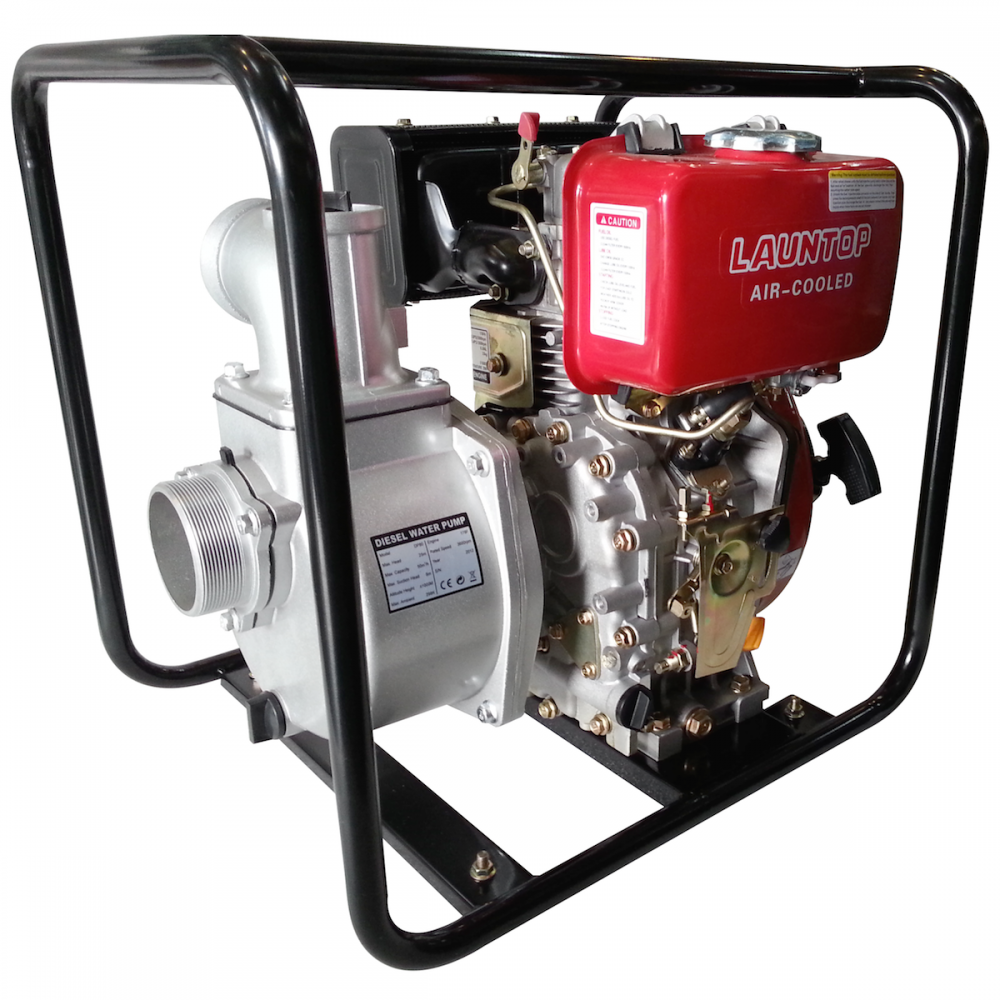

DIESEL & GASOLINE WATER PUMP
Product Code: LDP80C
Availability: Pre Order
FEATURES
- Quality pump kit with thicker material
| Diesel Water Pump | |||
| Model | LDP50C/CL | LDP80C/CL | LDP100C/CLE |
| Inlet (inch) | 2 | 3 | 4 |
| Outlet (inch) | 2"x 1 | 3" x 1 | 4" x 1 |
| Max. Capacity (m3/hr) | 30 | 50 | 65 |
| Max. Discharge Head (m) | 25 | 25 | 25 |
| Self-priming Time (s/4m) | 70 | 120 | 180 |
| Max. Suction Head (m) | 8 | 8 | 8 |
| Engine Model | LA170FA | LA178FA | LA186FA |
| Fuel Tank Capacity (L) | 2.5/12/5 | 3.5/12/5 | 5.5/12/5 |
| Dimension (L x W x H) (mm) | 475 x 400 x 500 475 x 455 x 615 (CL) |
540 x 440 x 540 540 x 455 x 655 (CL) |
645 x 475 x 605 645 x 475 x 725 (CL) |
| Net Weight (kg) | 41 | 49 | 70 |
