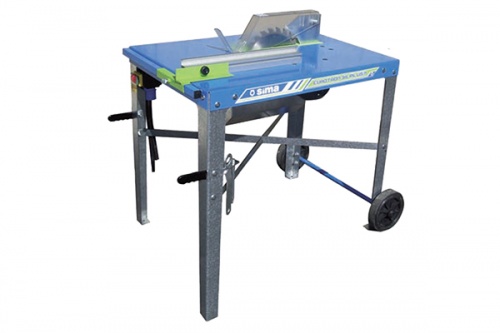

Eurotron 315 Plus
Product Code: Eurotron 315 Plus
Availability: Pre Order
Especially designed to cut any kind of wood panels up to 83mm high (3.2").
Reinforce chasis with folding blade guard, fully covering the blade.
transparent Poly carbonate blade screen, to keep your eyes on the cutting line.
Very easy to set up. Easy to move.
Leg reinforcing brackets. rebust legs can be anchored on the floor.;
CE certification, issued by the national Machinery Verification Centre, belonging to the institute of labour and safety at work.
Reinforce chasis with folding blade guard, fully covering the blade.
transparent Poly carbonate blade screen, to keep your eyes on the cutting line.
Very easy to set up. Easy to move.
Leg reinforcing brackets. rebust legs can be anchored on the floor.;
CE certification, issued by the national Machinery Verification Centre, belonging to the institute of labour and safety at work.
Product Detail
| Eurotron 315 Plus | ||||||
| 3 kW | 3 kW | 3 kW | ||||
| Item code | 3556 | 3568 | 3571 | 3564 | 3569 | 3572 |
| Motor Voltage (V) | 230 | 400 | 230 | |||
| Frequency (Hz) / in (pins) | 50/30P | 60/3P | 50/4P | 50/5P | 60/4P | |
| Kw (hp) | 2.2 (3) | 3(4) | ||||
| Blade bore diameter (mm / in) | 30/1.1" | 30/1.1" | ||||
| Max. blade diameter (mm / in) | 315 / 13" | 315 / 13" | ||||
| Blade inclded (mm / in) | 315 / 13" | 315 / 13" | ||||
| Max cutting depth (mm / in) | 83 / 3.2" | 93 / 3.2" | ||||
| Netweight (kg/lbs) | 56 / 123.4 | 56 / 123.4 | ||||
| Packaging dimension L x W x H (mm / in) | 1080 x 690 x 1060 / 42.5" x 27" x 41.7" | 1080 x 690 x 1060 / 42.5" x 27" x 41.7" | ||||
