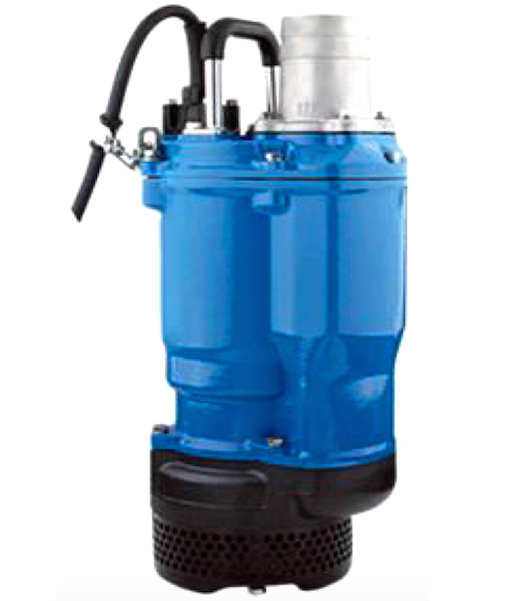

MEUDY DEWATERING SUBMERSIBLE PUMP KBZ31.5 (3 PHASE)

Model: KBZ31.5 (3 phase)
KBZ 3" Dewatering Submersible Pump.

Features

• The body of motor & pump is made of rigid cast iron for long-lasting durability.
• Greatly increased max. submersion depth due to m.seal resistant to high pressure 0.5Mpa)
• Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.
• Effective motor cooling due to discharge channel cast as part of the motor housing. Space economy by a top outlet.
• Discharge 50mm(2") to 150mm(6"), motor 1.5kw(2hp) to 15kw(20hp)
• Hermerically sealed motor equipped build-in thermal protection.
• Capacity up to 155m3/h. Cable:length 8m.
• Water temperature up to 40°C. Max.water depth:50m.

Specifications
