Model: KBZ411 (3 phase)

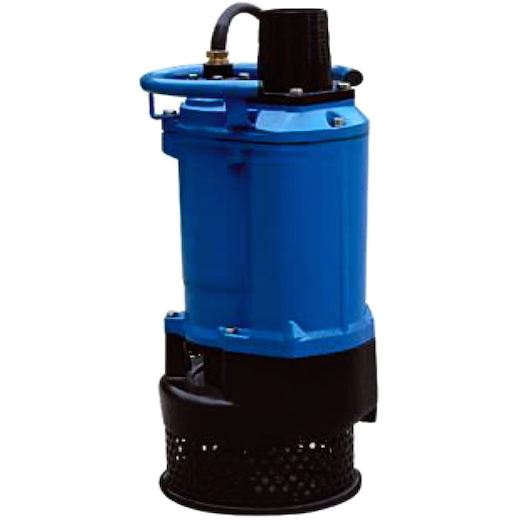

KBZ 4" Dewatering Submersible Pump.

Features

  • The body of motor & pump is made of rigid cast iron for long-lasting durability.
  • Greatly increased max. submersion depth due to m.seal resistant to high pressure 0.5Mpa)
  • Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.
  • Effective motor cooling due to discharge channel cast as part of the motor housing. Space economy by a top outlet.
  • Discharge 50mm(2") to 150mm(6"), motor 1.5kw(2hp) to 15kw(20hp)
  • Hermerically sealed motor equipped build-in thermal protection.
  • Capacity up to 155m3/h. Cable:length 8m.
  • Water temperature up to 40°C. Max.water depth:50m.

Specifications

Power 15HP
Maximum Capacity 1440L/min
Maximum Head 48.5m
Outlet 100MM(4")
Impeller Passage 11.5mm
Dimensions (H x L x W) 850mm x 430mm x 390mm
Weight 140kg
