Panther 56 - 72
Panther 56 - 72

Panther 56 - 72

Product Code: Panther 56 - 72
Availability: Pre Order
Loading ...
017 432 8850016 397 5838

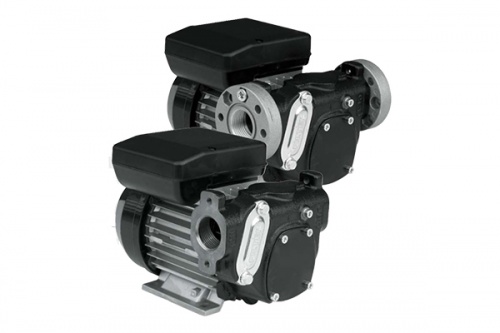

Diesel transfer electric Pump.

Displacement, self-priming rotary electric vane pumps.

Fitted with by-pass valve and elevated reliability seal even at low
Share:

Product Detail

Weight and Packaging

Code Weight Packaging
KG Lbs mm inch pcs/box
Panther 56
F00730000 7,4 16,3 345x175x255 13,6x6,9x10 1
000731000 7,4 16,3 345x175x255 13,6x6,9x10 1
000730070 7,4 16,3 345x175x255 13,6x6,9x10 1
F00730380 7,4 16,3 345x175x255 13,6x6,9x10 1
000733000 7,4 16,3 345x175x255 13,6x6,9x10 1
000734000 7,4 16,3 345x175x255 13,6x6,9x10 1
Panther 72
000732000 7,9 17,4 345x175x255 13,6x6,9x10 1
000735000 7,9 17,4 345x175x255 13,6x6,9x10 1

Technical Data

  Panther 56 Panther 72
Code F00730000 000731000 000730070 F00730380 000733000 000734000 000732000 000735000
Description Panther 56 230/50 Panther 56 230/60 Panther 56 120/60 Panther 56 110/50 Panther 56 400/50 Panther 56 400/60 Panther 56 230/50 Panther 56 400/50
Fluids (type) D D D D D D D D
Flow-rate (I/min) 56 68 56 56 56 68 72 72
Flow-rate (gpm) 15 18 15 15 15 18 19 19
Voltage (Singlephase motor V./Hz) 230/50 230/60 120/60 120/50 - - 230/50 -
Voltage (Threephase motor V./Hz) - - - - 400/50 400/60 - 400/50
Voltage (Power Walt) 600 800 800 600 500 500 850 550
Voltage (Amp max.) 3 3,9 7,5 5,5 1,3 1,4 4,2 1,6
rpm 2900 3400 3400 2800 2900 3400 2900 2900
Flango connection 1" 1" 1" 1" 1" YES YES
Bypass valve YES YES YES YES YES YES YES YES
Inlet Filter YES YES YES YES YES YES YES YES

Performance

  • Flow rate up to 72 I/min
  • Continuous AC operation.
  • Noise level below 75dB
  • Incorporated filter

Dimension
