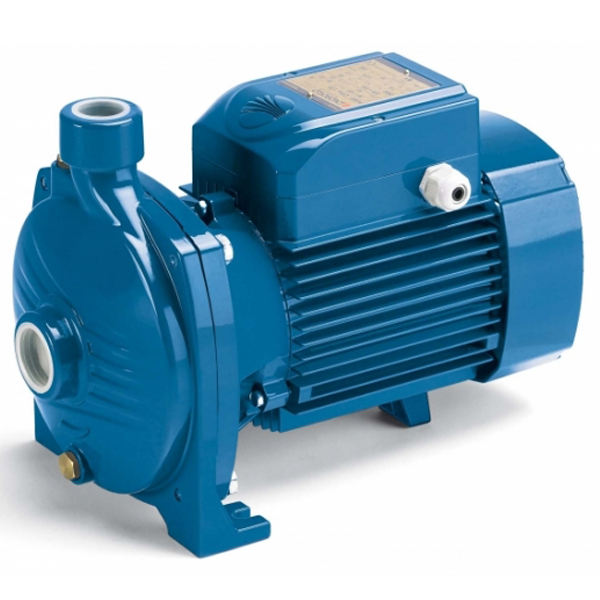

Pedrollo Centrifugal Pump 1.5kW, 30~140L/min, 46~26m, CP190

Pedrollo Centrifugal Pump 1.5kW, 30~140L/min, 46~26m, CP190
Pedrollo Centrifugal Pump 1.5kW, 30~140L/min, 46~26m, CP190

Pedrollo Centrifugal Pump 1.5kW, 30~140L/min, 46~26m, CP190

Product Code: CP190
Availability: In Stock
Loading ...
Share:

Model: CP190 (Three Phase)

Price inclusives 6%GST.

Descriptions

  • Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
  • As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.


Pumped liquid: clean water

Use: domestic, civil

Type: surface

Range: centrifugal

Application limits

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10 °C and +90 °C (up to +40 for the version with the technopolymer impeller)
  • Ambient temperature up to +40 °C
  • Max. working pressure:
  • (a) 6 bar for CP 100-130-132-150-158, CP 600-610-620
    (b) 10 bar for CP 170-190-200, CP 650-660-670-650M-660M-670M
  • Continuous service S1

Specifications

Size Discharge   1-1/4" x 1"
Power 1500 W / Three phase
Flow Rate 30 ~ 140 L/min
Head 46 ~ 26 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   364mm x 242mm x 290mm
Weight 21.3 kg
